Rh Peterson G45-30-11 Triple T Gas Log Burner 95000 Btu/h

Product Description

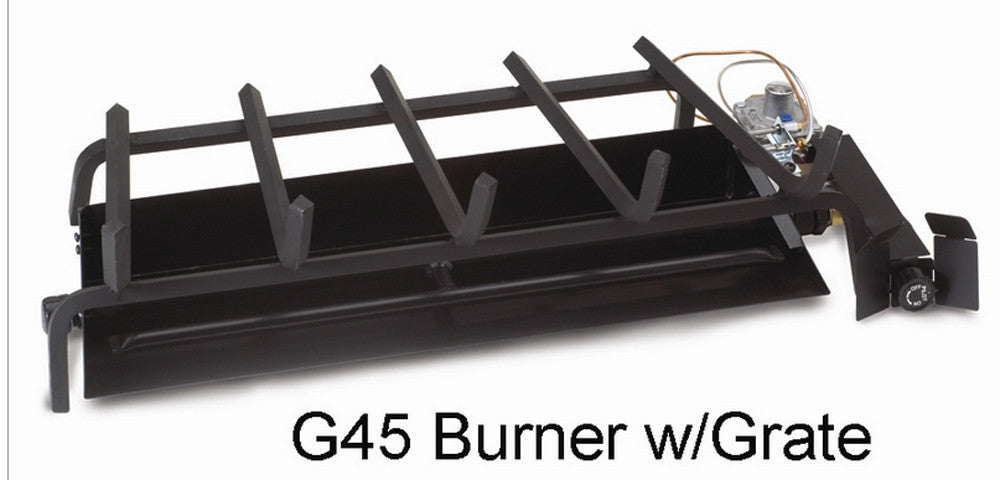

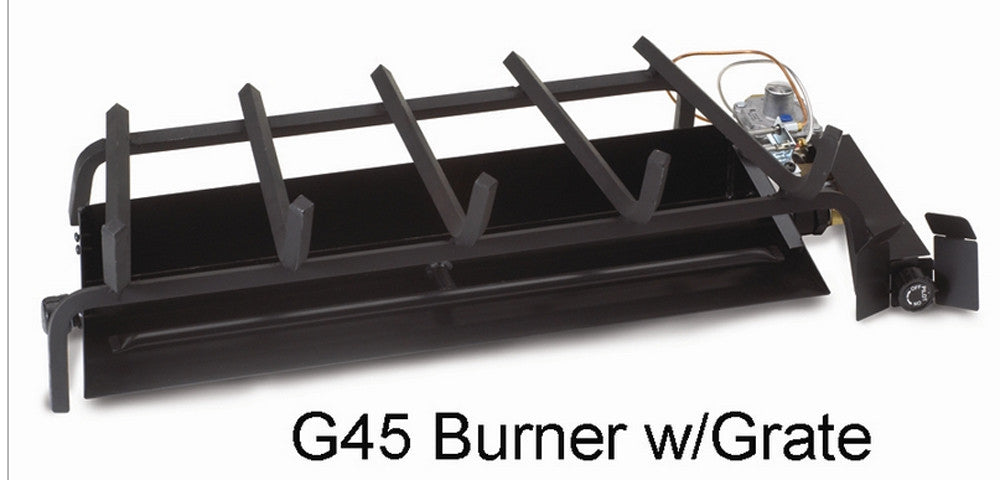

The RH PETERSON G45-30-11 is a Triple T vented natural gas log burner designed for single-sided indoor fireplaces. The Triple T configuration uses a main burner tube running the length of the unit with a smaller front flame burner that intersects it, creating three additional flame ports across the front. This geometry positions flames directly beneath the log set to produce visible front flame, depth across the fire bed, and a glowing ember effect. The burner ships as a complete system and is rated at 95,000 BTU/h maximum on natural gas. It is installed by licensed gas technicians and requires a compatible vented log set, sold separately.

The G45-30-11 is sized for fireplaces with a minimum opening of 40 inches wide, 34 inches deep, and 16 inches tall. It is approved for mobile home installations. The burner operates on natural gas with millivolt ignition and includes the APK-11 on/off safety valve assembly. The APK-11 uses a standing pilot and an RR-1 on/off remote transmitter and receiver, allowing the burner to be switched on or off from a remote or manually from inside the firebox. This burner is certified to work only with specific compatible Real-Fyre log sets sized for 30 inches. Using a non-compatible log set creates risk of fire, carbon monoxide poisoning, and property damage.

Key Features

• Triple T burner geometry produces front flame, depth, and glowing embers across the full length of the tubes
• 95,000 BTU/h maximum output on natural gas
• Millivolt ignition with standing pilot — no 120-volt power required at the firebox
• Includes APK-11 safety valve, RR-1 on/off remote transmitter and receiver, burner pan, grate, glowing embers, sand, burner clips, flex connector kit, and damper clamp
• Mobile home approved for installations meeting applicable codes
• Upgradeable to RR-2 deluxe remote with thermostat, timer, clock, and room temperature display (sold separately)

Compatibility

Certified for use only with compatible Real-Fyre gas log sets sized for 30 inches. Log set is not included. Requires a minimum fireplace opening of 40 inches wide, 34 inches deep, and 16 inches tall. Depth measurement begins inside the ash lip where one exists. This burner is not universal and must not be paired with non-certified log sets.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with NFPA 54 and all applicable local codes. Shut off the gas supply at the appliance shutoff valve before connecting or servicing any components. Verify inlet gas pressure falls within the 5.0 to 10.5 inches water column range before commissioning. A damper clamp is included and must be installed to prevent the damper from closing while the burner is in service.

Technical Specifications

• Fuel Type: Natural Gas
• BTU/h (Max): 95,000
• Ignition Type: Millivolt (Remote Ready)
• Inlet Gas Pressure (Min): 5.0 inches w.c.
• Inlet Gas Pressure (Max): 10.5 inches w.c.
• Gas Connection Size: 0.5 inches
• Allowable Log Set Size: 30 inches
• Minimum Fireplace Width: 40 inches
• Minimum Fireplace Depth: 34 inches
• Minimum Fireplace Height: 16 inches
• Venting Type: Vented
• Location of Use: Indoor
• Fireplace Style: Single Sided
• Certifications: Mobile Home Approved

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-30-11
