Rh Peterson G45-24-17P Burner Real Fyre G45 Triple T 24 Inch 65K BTU

Product Description

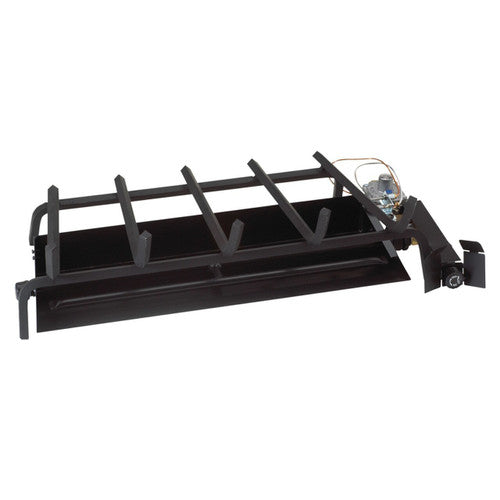

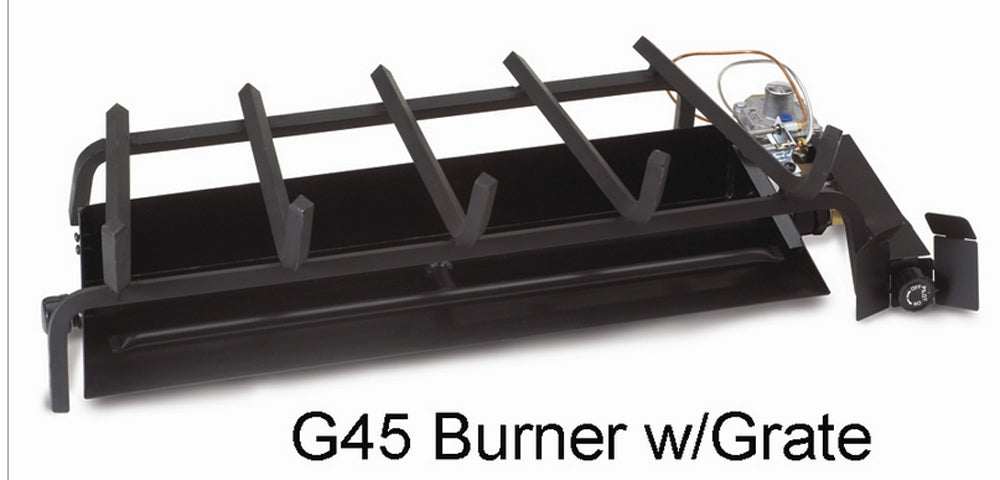

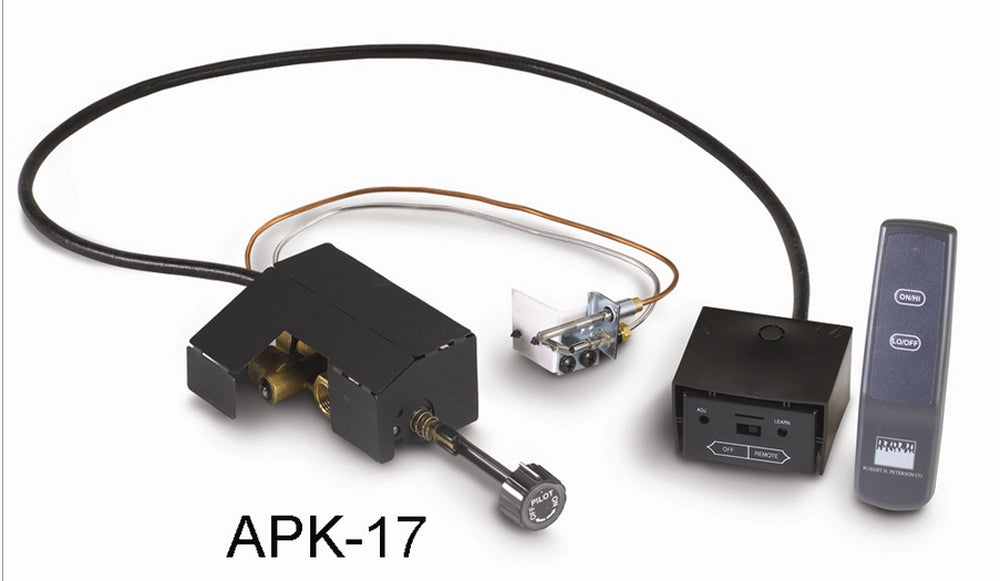

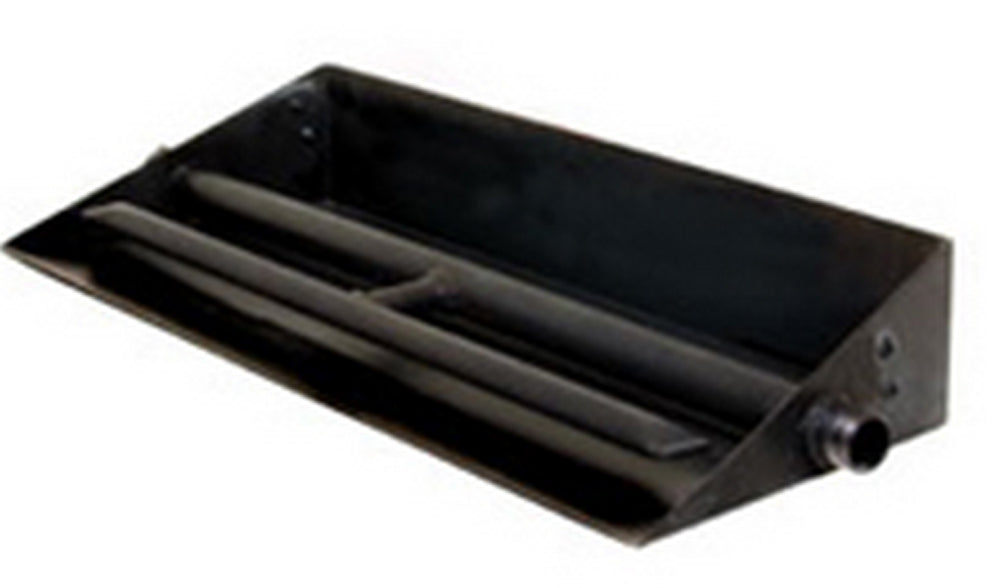

The RH PETERSON G45-24-17P is a Real Fyre G45 Triple T burner designed for use with a log set. Its Triple T design features a main burner tube with a smaller front flame burner that accentuates the front flame and creates a bed of glowing embers for a realistic fire. Includes an assembled APK-17 variable flame remote control safety pilot system.

• Triple T Burner design
• Front flame burner accentuates the front flame
• Creates a bed of glowing embers

Product Highlights

The G45 burner provides dancing flames and glowing embers for a realistic fire. It includes a variable flame remote for easy flame adjustment.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-24-17P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 24"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 65000
• Ignition Type: Electronic Ignition
• Remote: Variable Flame Remote Included
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): NA
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 34"
• Req. Min. Rear Width (in.): 28"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
• Size: 24"
