Rh Peterson G45-24-11P Real Fyre G45 Triple T 24 Inch 65K BTU

Product Description

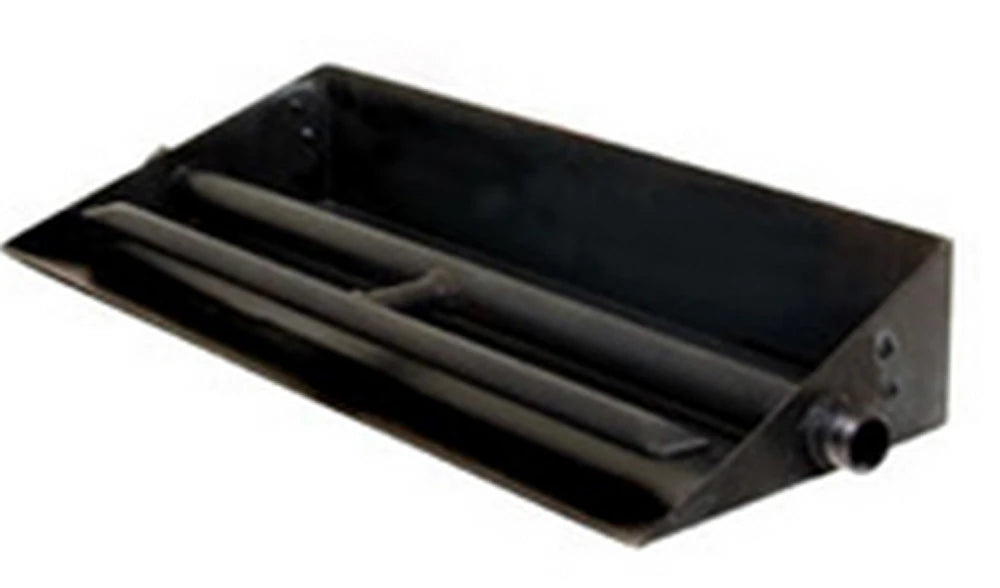

The RH PETERSON G45-24-11P is a Real Fyre G45 Triple T burner with APK-11M. This 24-inch propane vented burner delivers 65K BTU with an on/off remote. The G45 burner features a main burner tube with a smaller front flame burner, providing a realistic flame presence. It includes a burner pan, grate, glowing embers, and an assembled APK-11 on/off safety valve.

• Triple T burner design for realistic flames

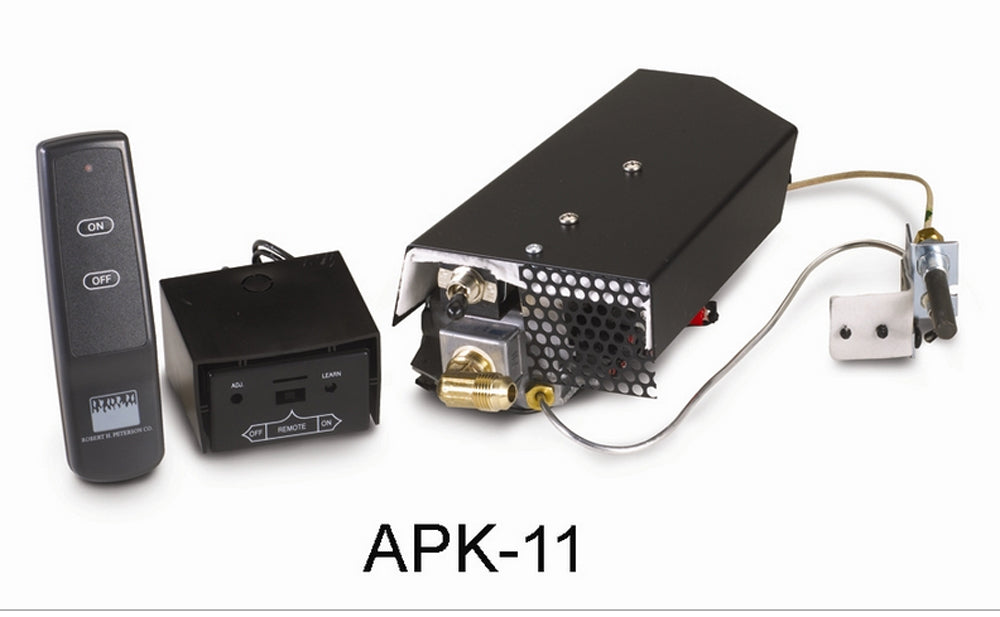

• Includes APK-11 on/off safety valve with remote
• Suitable for vented propane gas fireplaces

Product Highlights

The RH PETERSON Real Fyre G45 burner provides a realistic flame with its Triple T design and includes a remote-controlled safety valve for convenient operation.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-24-11P

Technical Specifications

• BTU: 65K
• Type: Vented
• Remote: On/Off Remote
• Fuel: Propane
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 24"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 65000
• Ignition Type: Millivolt (Remote Ready)
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 34"
• Req. Min. Rear Width (in.): 28"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
