Rh Peterson G45-24-11 Triple T Vented Gas Burner 90K Btu

Product Description

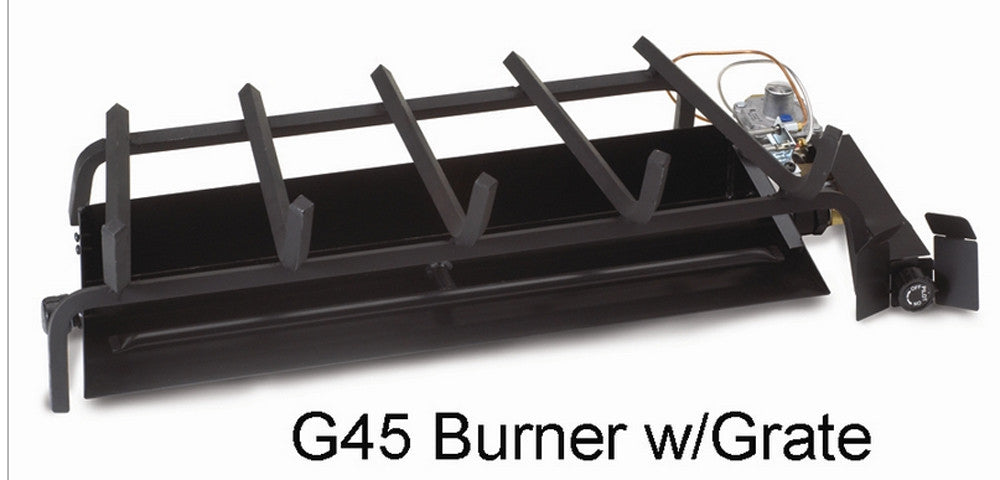

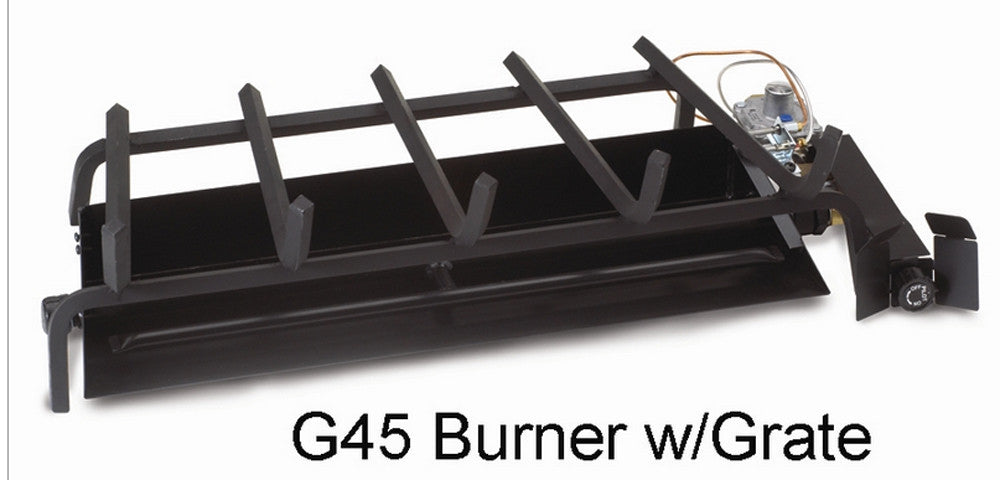

The RH PETERSON G45-24-11 is a 24-inch Triple T vented natural gas log burner rated at 90,000 BTU/h, designed for installation in single-sided, indoor masonry or prefabricated fireplaces. The Triple T design features a main burner tube running the full length of the unit with a secondary front-flame tube that intersects it, creating a T-shaped configuration. This layout lets the installer position the burner directly beneath a compatible log set to accentuate front flames and produce a realistic bed of glowing embers. The millivolt ignition system is remote-ready, and the APK-11 on/off safety pilot valve with RR-1 remote transmitter and receiver is included in the package.

This burner is intended for residential indoor single-sided fireplaces. The G45-24 size requires a minimum fireplace width of 34 inches and a minimum depth of 28 inches, with a height clearance of at least 13 inches. It is approved for mobile home installation. The system ships with the burner pan, grate, glowing embers, sand, burner clips, flex connector kit, and damper clamp. A compatible Real-Fyre gas log set sized for 24-inch burners is required but sold separately. Burners are certified to work with specific log sets only and are not universal.

Key Features

• Triple T burner geometry with front-flame tube for enhanced ember bed and flame depth
• 90,000 BTU/h maximum output on natural gas
• Millivolt ignition with APK-11 on/off safety pilot valve included
• RR-1 on/off remote transmitter and receiver included; upgradeable to RR-2 thermostat remote (sold separately)
• Mobile Home Approved certification
• Complete installation kit included: burner pan, grate, embers, sand, clips, flex connector, and damper clamp

Compatibility

Designed for use with Real-Fyre 24-inch gas log sets only. Burners are certified for use with specific log sets and are not interchangeable with non-compatible sets. Using this burner with an incompatible log set creates risk of fire, carbon monoxide exposure, and property damage. Compatible log set sold separately.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with the International Fuel Gas Code (IFGC) and all applicable local codes. Shut off the gas supply at the main valve and confirm zero pressure before making any connections. The 1/2-inch gas inlet connection requires a flexible connector; one is included in the kit. Verify the fireplace damper is clamped open per the included damper clamp before placing the system into service.

Technical Specifications

• Fuel Type: Natural Gas (NG)
• BTU/h (Max): 90,000
• Burner Size: 24 inches
• Ignition Type: Millivolt (Remote Ready)
• Minimum Fireplace Width: 34 inches
• Minimum Fireplace Depth: 28 inches
• Minimum Fireplace Height: 13 inches
• Gas Connection Size: 1/2 inch
• Inlet Gas Pressure (Min): 5.0 inches w.c.
• Inlet Gas Pressure (Max): 10.5 inches w.c.
• Venting Type: Vented
• Location of Use: Indoor
• Fireplace Style: Single Sided
• Certifications: Mobile Home Approved

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-24-11
