Rh Peterson G45-24-02P Real-Fyre 24 inches Triple T Vented Burner with Low Profile Electronic Pilot - Liquid Propane

Product Description

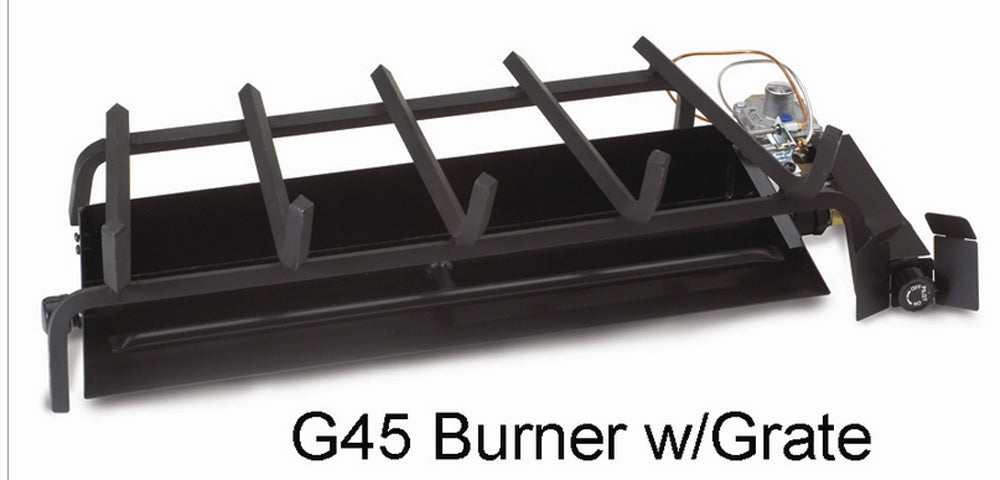

The RH PETERSON G45-24-02P burner is a Triple T Burner with a main burner tube and a smaller front flame burner. The additional front flame helps accentuate the front flame. This burner gives you a nice bed of glowing embers under flames. The G45 burner gives you dancing flames across the length of the burner tubes for a realistic fire.

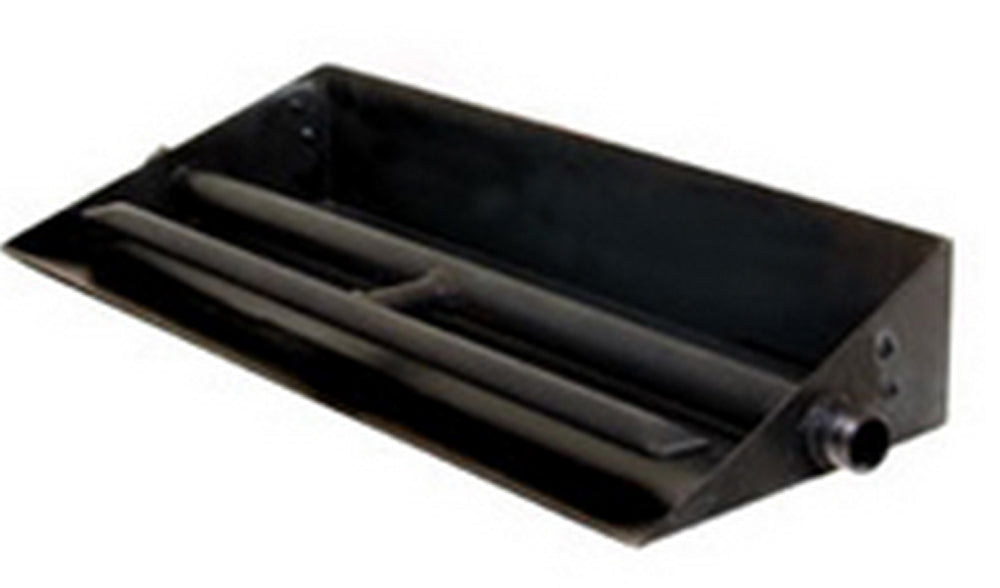

• Includes burner pan, grate, glowing embers, and vermiculite
• Features an assembled EPK-2 electronic ignition pilotless system
• Operated manually or with the included basic RR-1A On/Off remote control

Product Highlights

The G45 burner system includes burner pan, grate, glowing embers, and vermiculite. It features an assembled EPK-2 electronic ignition pilotless system and can be operated manually or with the included basic RR-1A On/Off remote control.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-24-02P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 24"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 65000
• Ignition Type: Electronic Ignition
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 34"
• Req. Min. Rear Width (in.): 28"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
