Rh Peterson G45-18/20PA Triple T Vented Lp Gas Burner

Product Description

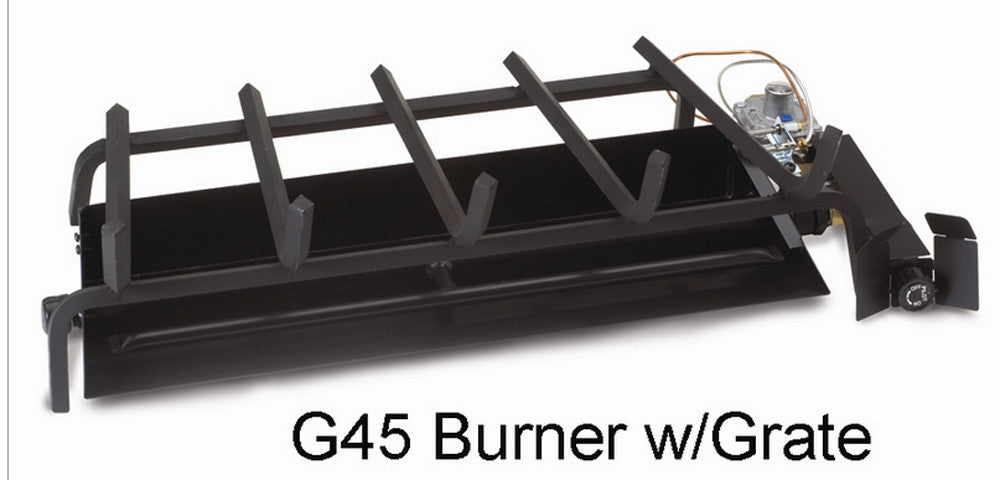

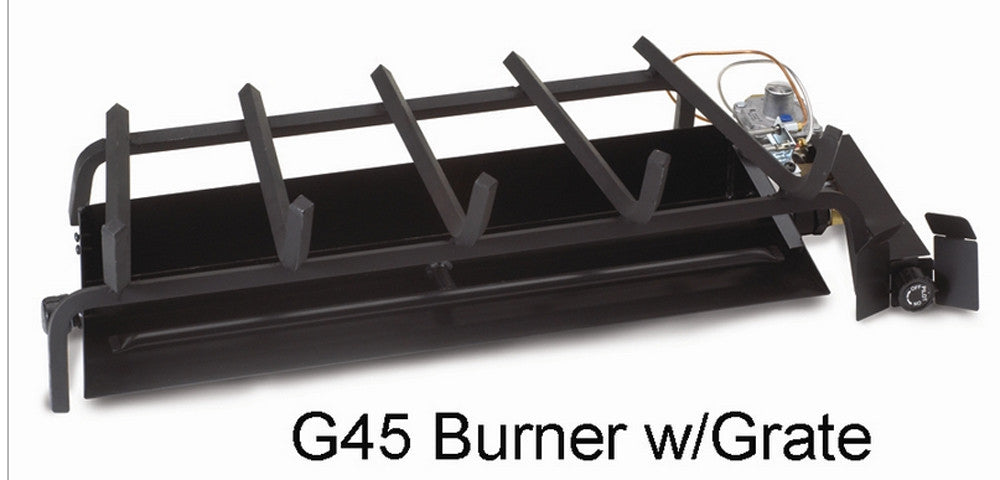

The RH PETERSON G45-18/20PA is a Triple T vented gas log burner designed for single-sided, indoor residential fireplaces fueled by liquid propane. It features a main burner tube running down the center with a smaller front flame tube that tees off the main line, creating three additional flame ports for added depth and a realistic fire appearance. At a maximum output of 45,000 BTU/h for LP, the G45-18/20PA supports 18-inch and 20-inch compatible log sets. The system ships fully assembled with the SPK-26 safety valve, burner pan, grate, glowing embers, vermiculite, burner clips, flex connector kit, and damper clamp. Log sets are sold separately. A licensed gas technician or qualified HVAC professional should perform installation.

This burner is intended for vented, single-sided indoor fireplaces where a traditional log set appearance is desired. It is approved for mobile home installations. The G45-18/20PA requires a minimum fireplace opening of 30 inches wide, 24 inches deep, and 13 inches tall at the front, with a rear height of 17 inches. It is sized to accommodate 18-inch and 20-inch Real-Fyre gas log sets. Only compatible log sets that are specifically approved for the G45-18/20PA should be used with this burner. Using a non-compatible log set can result in fire hazard, carbon monoxide exposure, or property damage.

Key Features

• Triple T burner design with front flame tube and three additional flame ports for realistic fire depth
• 45,000 BTU/h maximum output on liquid propane
• Comes assembled with SPK-26 safety valve, burner pan, grate, embers, vermiculite, clips, flex connector kit, and damper clamp
• Manual ignition — no remote required or included
• Mobile home approved for versatile installation settings
• Inlet gas pressure range: 11.0 to 13.0 inches water column

Compatibility

Designed for use with Real-Fyre 18-inch and 20-inch gas log sets that are specifically approved for the G45 burner. Burners are certified to work with specific log sets only and are not universal. Consult the approved log set list for the G45-18/20PA before selecting a log set. Log set is not included.

Installation Notes

Installation must be performed by a licensed gas technician or qualified HVAC professional in accordance with local codes and the appliance manufacturer instructions. Shut off the LP gas supply at the source before beginning any connection or service work. Verify that the fireplace opening meets the minimum dimensional requirements before installing the burner. Do not use this burner with log sets that are not specifically listed as compatible with the G45-18/20PA.

Technical Specifications

• Fuel Type: Liquid Propane (LP)
• BTU Output (Max): 45,000 BTU/h
• Ignition Type: Manual (No Remote)
• Allowable Log Set Sizes: 18 inches / 20 inches
• Minimum Fireplace Width (Front): 30 inches
• Minimum Fireplace Depth: 24 inches
• Minimum Fireplace Height (Front): 13 inches
• Minimum Fireplace Height (Rear): 17 inches
• Gas Connection Size: 1/2 inch
• Inlet Gas Pressure (Min): 11.0 inches w.c.
• Inlet Gas Pressure (Max): 13.0 inches w.c.
• Venting Type: Vented
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Mobile Home Approved: Yes
• Included Components: SPK-26 Safety Valve, Burner Pan, Grate, Glowing Embers, Vermiculite, Burner Clips, Flex Connector Kit, Damper Clamp

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-18/20PA
