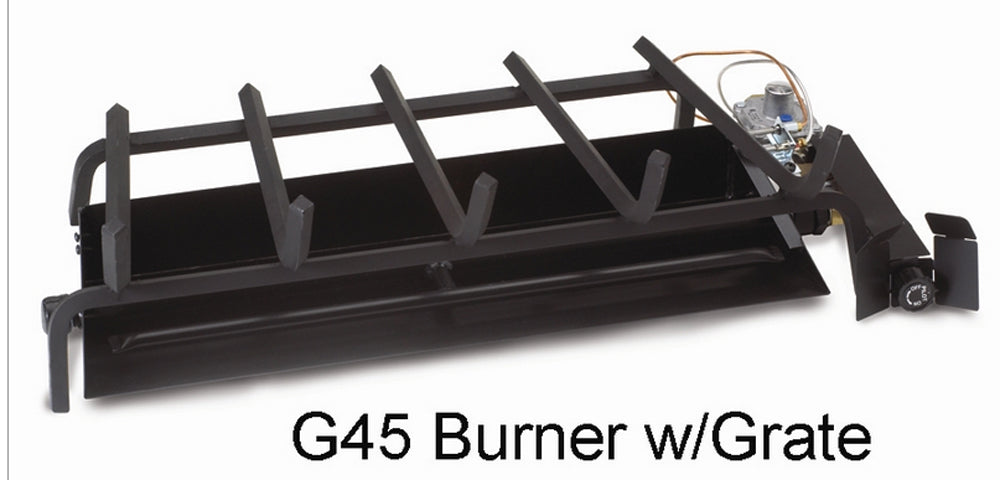

Rh Peterson G45-18/20 Real-Fyre Triple T Vented Burner - Natural Gas (18 inches / 20 inches)

Product Description

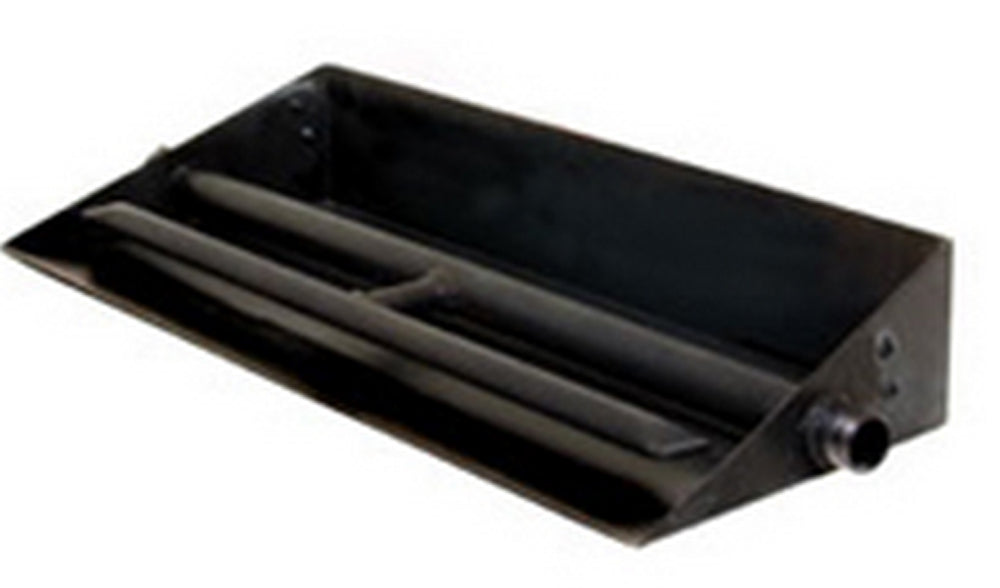

The RH PETERSON G45-18/20 is a Triple T Burner with a main burner tube and a smaller front flame burner. The additional front flame accentuates the front flame and creates glowing embers under dancing flames. The G45 burner provides dancing flames across the burner tubes and glowing embers for a realistic fire. Log set is sold separately.

• Triple T Burner design
• Accentuates front flame
• Creates a bed of glowing embers

Product Highlights

The G45 burner system includes a burner pan, grate, glowing embers, sand, burner clips, flex connector kit, and damper clamp.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-18/20

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 18" / 20"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 70000
• Ignition Type: Manual (No Remote)
• Remote: Not Available
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): NA
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.): 30"
• Req. Min. Rear Width (in.): 24"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
