Rh Peterson G45-18/20-17P Burner Real Fyre G45 Triple T 18/20 Inch 45K BTU

Product Description

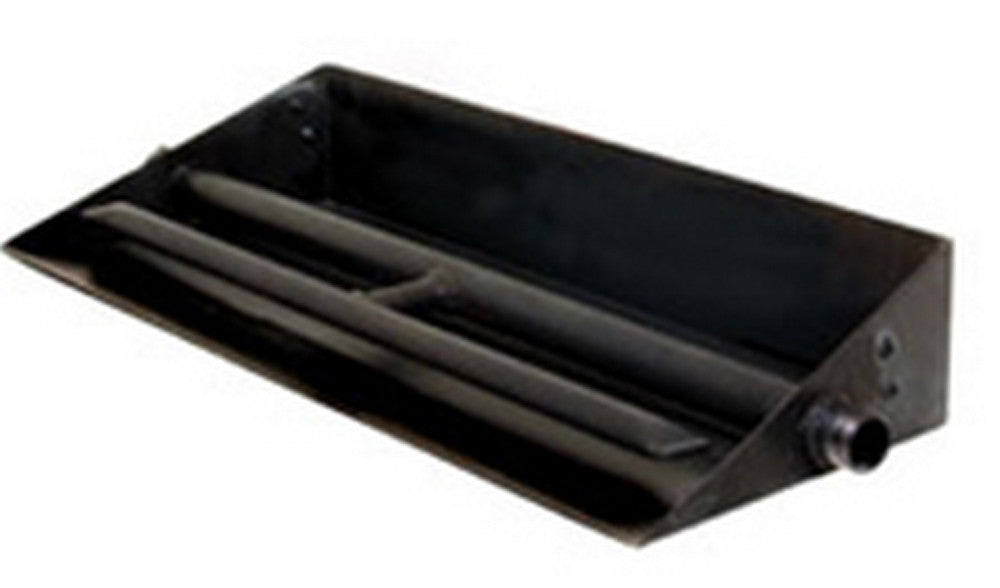

The RH PETERSON G45-18/20-17P is a Triple T burner system with a main burner tube and a smaller front flame burner. This burner accentuates the front flame and provides a bed of glowing embers under dancing flames. The G45 burner gives you dancing flames across the length of the burner tubes for a realistic fire.

• Triple T burner system
• Additional front flame
• Nice bed of glowing embers

Product Highlights

The burner includes a heavy-duty grate, glowing embers, vermiculite, burner clips, and a flex connector kit. Automatic Pilot and Variable Remote are also included.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-18/20-17P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Heavy Duty
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 18" / 20"
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 45000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Variable Flame Remote Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Requirements for 18" or 20" Logs Req. Min. Front Width (in.): 30"
• Req. Min. Rear Width (in.): 24"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 17"
