Rh Peterson G45-18/20-11P Real Fyre G45 Triple T 18/20 Inch 45K BTU

Product Description

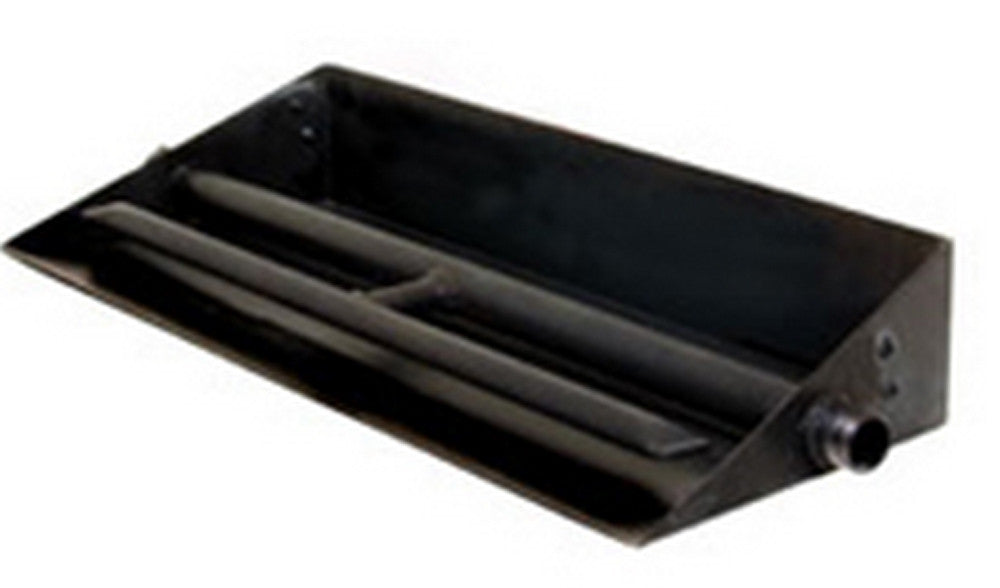

The RH PETERSON G45-18/20-11P is a Real Fyre G45 Triple T burner with APK-11M. This 18/20 inch propane vented burner delivers 45K BTU and includes an on/off remote. It features a main burner tube with a smaller front flame burner, creating a bed of glowing embers under dancing flames. The burner also has three additional spaces for flames.

• Triple T burner system
• Front flame burner accentuates the front flame
• Nice bed of glowing embers under beautiful dancing flames

Product Highlights

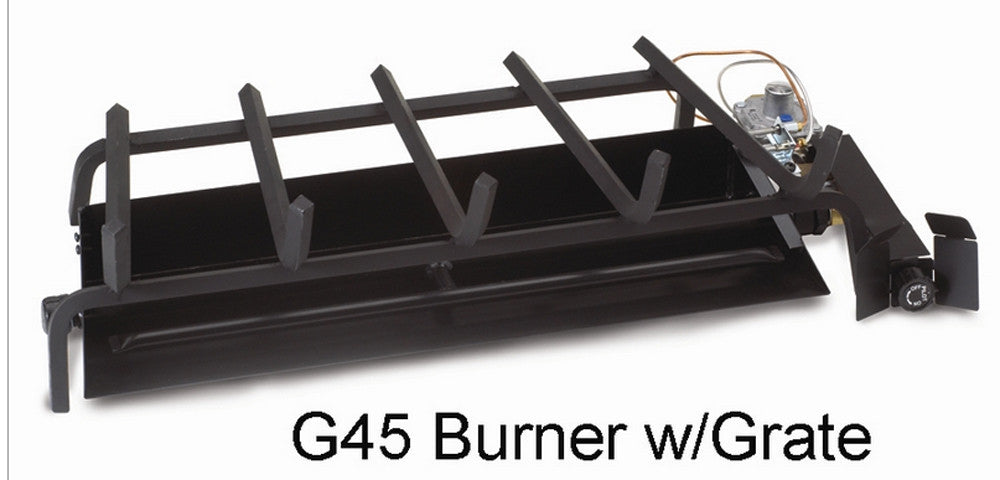

The G45 burner provides dancing flames and glowing embers for a realistic fire. It includes a heavy-duty grate and an automatic pilot with an on/off remote.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-18/20-11P

Technical Specifications

• Brand: RH Peterson
• MPN: G45-18/20-11P
• BTU: 45K
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Heavy Duty
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 18" / 20"
• Allowable Log Sets: Royal English Oak Designer
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 45000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): NA
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 30"
• Req. Min. Rear Width (in.): 24"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 17"
