Rh Peterson G45-18/20-02p Real-Fyre Triple T Vented Burner 18 inches / 20 inches Replacement EPK-2

Product Description

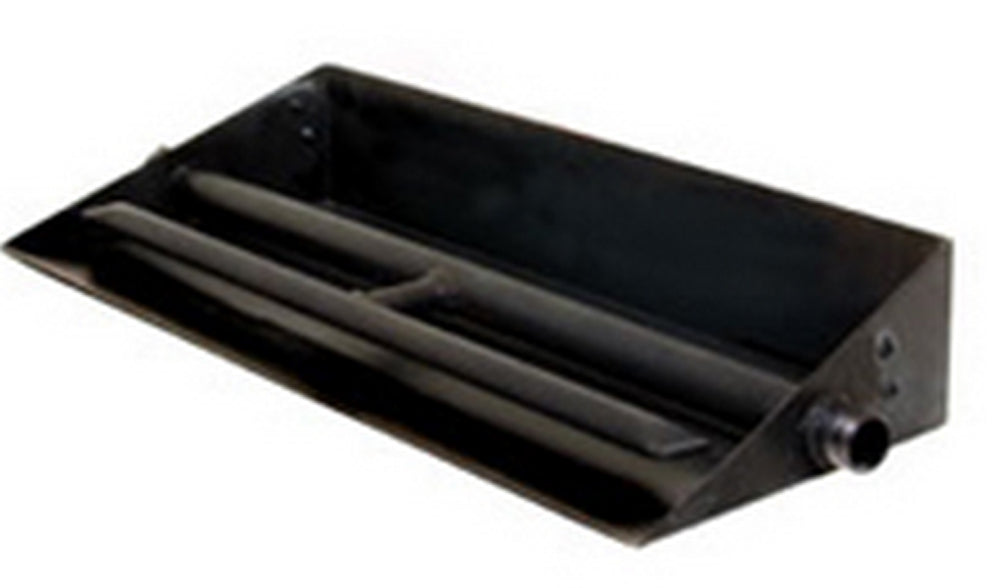

The RH Peterson G45-18/20-02P Real-Fyre burner is a Triple T Burner with a main burner tube and a smaller front flame burner. The additional front flame helps accentuate the front flame. This burner gives you a bed of glowing embers under flames for a realistic fire. The G45 burner gives you dancing flames and glowing embers for a realistic fire.

• Includes burner pan, grate, glowing embers, and vermiculite
• Features an assembled EPK-2 electronic ignition pilotless system
• Operated manually or with the included basic RR-1A On/Off remote control

Product Highlights

The G45 burner system includes a burner pan, grate, glowing embers, vermiculite, burner clips, flex connector kit, and damper clamp. It features an assembled EPK-2 electronic ignition pilotless system and can be operated manually or with the included basic RR-1A On/Off remote control.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-18/20-02P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 18" / 20"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 45000
• Ignition Type: Electronic Ignition
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 30"
• Req. Min. Rear Width (in.): 24"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
