Rh Peterson G45-18/20-02 Real-Fyre Triple T Vented Burner with Low Profile Electronic Pilot - Natural Gas 18 inches / 20 inches

Product Description

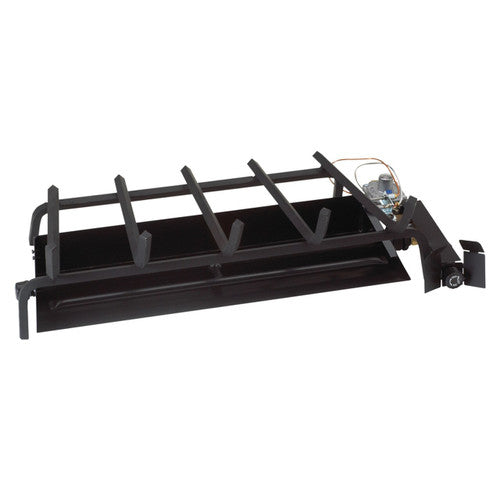

The RH Peterson G45-18/20-02 burner is a Triple T Burner with a main burner tube and a smaller front flame burner. The additional front flame allows you to position the burner directly beneath the logs helping to accentuate the front flame. The G45 burner gives you dancing flames and glowing embers for a realistic fire. Assembled EPK-2 electronic ignition pilotless system included.

• Triple T Burner design
• Front flame burner accentuates the front flame
• Creates a bed of glowing embers

Product Highlights

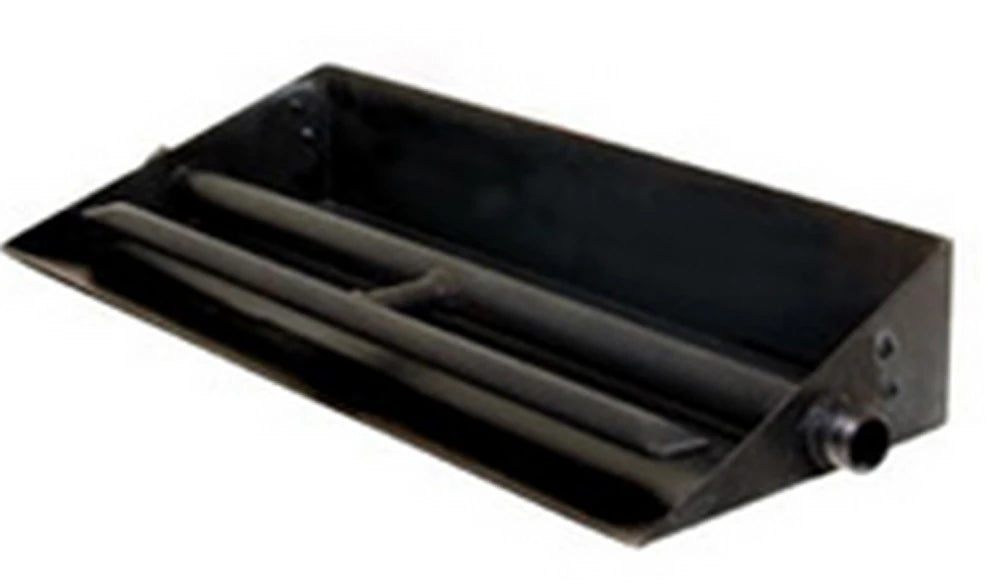

The G45 burner system includes burner pan, grate, glowing embers, sand, burner clips, flex connector kit, and damper clamp. It can be operated manually or with the included basic RR-1A On/Off remote control.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-18/20-02

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 18" / 20"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 70000
• Ignition Type: Electronic Ignition
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.): 30"
• Req. Min. Rear Width (in.): 24"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
• Brand: Real Fyre
• Size: 18/20"
• Manufacturer: RH Peterson
