Rh Peterson G45-16/19AP Triple T Vented Lp Gas Burner

Product Description

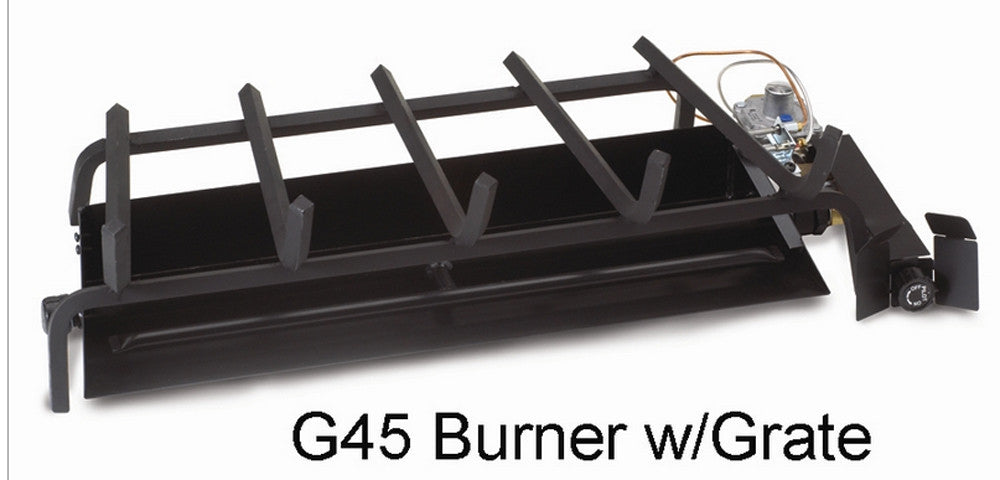

The RH PETERSON G45-16/19AP is a Triple T vented gas log burner designed for liquid propane (LP) single-sided indoor fireplaces. It features a main burner tube running down the center with a smaller front-flame tube that tees off from it, creating three additional flame ports for added depth and a realistic fire appearance. This configuration positions flames directly beneath the logs and produces a glowing ember bed across the full burner length. Rated at 30,000 BTU/h maximum, it ships as a complete assembly ready for connection by a licensed gas technician. Mobile Home Approved for qualifying installations.

The G45-16/19AP is sized for fireplaces with a minimum width of 29 inches, a minimum depth of 22 inches, and a minimum height of 11 inches, with a rear clearance of 17 inches. It accommodates 16-inch and 19-inch compatible Real-Fyre gas log sets sold separately. The burner is certified for indoor, single-sided, vented fireplace applications and is suited for residential settings including mobile homes. The assembled SPK-26 safety valve is included. This unit runs on liquid propane only and is not configured for natural gas.

Key Features

• Triple T burner design with center main tube and front-flame tee for enhanced flame depth and ember glow
• 30,000 BTU/h maximum output on liquid propane
• Includes burner pan, grate, glowing embers, sand, burner clips, flex connector kit, damper clamp, and assembled SPK-26 safety valve
• Manual ignition — no remote required or available
• Mobile Home Approved certification
• Inlet gas pressure range: 11.0 to 13.0 inches water column (w.c.)

Compatibility

Designed for use with compatible 16-inch and 19-inch Real-Fyre gas log sets only. Burners are certified to work with specific log sets and are not universal — using this burner with a non-compatible log set creates risk of fire, carbon monoxide poisoning, and property damage. Log set is sold separately. For G45-model variants ending in -02, add 2 inches to both front and rear width requirements.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply completely before connecting or servicing any burner components. Verify fireplace opening dimensions meet the minimum requirements before installation, and confirm the damper clamp is properly secured to prevent inadvertent damper closure during operation. Do not operate this burner without a compatible, manufacturer-approved log set in place.

Technical Specifications

• Fuel Type: Liquid Propane (LP)
• BTU/h (Max.): 30,000
• Burner Type: Triple T Vented
• Ignition Type: Manual (No Remote)
• Allowable Log Set Sizes: 16 inches / 19 inches
• Minimum Fireplace Width: 29 inches
• Minimum Fireplace Depth: 22 inches
• Minimum Fireplace Height: 11 inches
• Rear Clearance: 17 inches
• Gas Connection Size: 1/2 inch
• Inlet Gas Pressure (Min.): 11.0 inches w.c.
• Inlet Gas Pressure (Max.): 13.0 inches w.c.
• Venting Type: Vented
• Location of Use: Indoor
• Fireplace Style: Single Sided
• Certification: Mobile Home Approved
• Safety Valve Included: SPK-26 (assembled)

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-16/19AP
