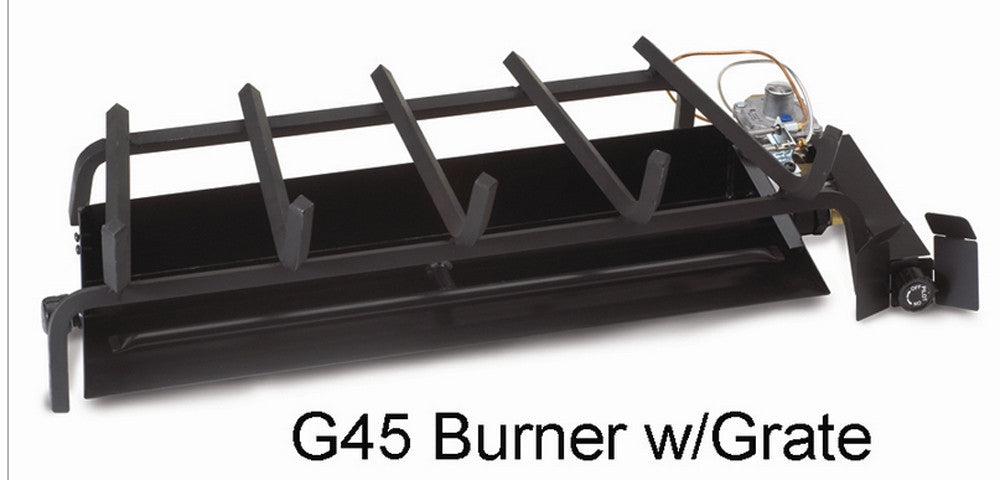

Rh Peterson G45-16/19 Triple T Vented Gas Log Burner

Product Description

The RH PETERSON G45-16/19 is a Triple T vented natural gas log burner designed for single-sided, indoor residential fireplaces. The Triple T configuration features a main burner tube running the length of the unit with a smaller front flame burner that branches off, creating three additional flame outlets along the front pipe. This geometry positions the burner directly beneath the log set, producing a deep bed of glowing embers and dancing flames across the full length of the burner. Rated at 40,000 BTU/h maximum output, the G45-16/19 requires a natural gas supply with inlet pressure between 5.0 and 10.5 inches water column and a 1/2 inch gas connection. Approved for mobile home installation.

This burner is suited for single-sided indoor fireplaces with a minimum opening of 29 inches wide, 22 inches deep, and 11 inches in height, with a rear height requirement of 17 inches. It is compatible with 16-inch and 19-inch Real-Fyre gas log sets only. Depth measurements begin inside the ash lip when one is present. The G45-16/19 uses manual ignition with no remote capability. The burner system is intended for installation by a qualified gas technician in accordance with applicable local codes and the manufacturer specifications.

Key Features

• Triple T burner design with main tube and front flame branch for added flame depth and realism
• 40,000 BTU/h maximum output on natural gas
• Includes burner pan, grate, glowing embers, sand, burner clips, flex connector kit, and damper clamp
• Manual ignition, no remote or electronic components required
• Mobile home approved for broader installation eligibility
• Vented operation for single-sided, indoor fireplaces only

Compatibility

Certified for use with Real-Fyre gas log sets sized 16 inches or 19 inches only. Burners are not universal and must be paired with a certified compatible log set. Using this burner with a non-compatible log set creates risk of fire, carbon monoxide poisoning, and property damage. Log set is sold separately. Minimum fireplace opening required: 29 inches wide, 22 inches deep, 11 inches front height, 17 inches rear height.

Installation Notes

Installation must be performed by a licensed gas technician in compliance with local fuel gas codes, including IFGC requirements where adopted. Shut off the gas supply completely at the shutoff valve before any service or installation work. Verify inlet gas pressure falls within the 5.0 to 10.5 inches water column range before commissioning. The damper must be permanently fixed open using the included damper clamp, as required for all vented gas log installations.

Technical Specifications

• BTU/h (Max.): 40,000 BTU/h
• Fuel Type: Natural Gas (NG)
• Venting Type: Vented
• Ignition Type: Manual (No Remote)
• Gas Connection Size: 1/2 inches
• Inlet Gas Pressure (Min.): 5.0 inches water column
• Inlet Gas Pressure (Max.): 10.5 inches water column
• Allowable Log Set Sizes: 16 inches / 19 inches
• Minimum Fireplace Width: 29 inches
• Minimum Fireplace Depth: 22 inches
• Minimum Fireplace Front Height: 11 inches
• Minimum Fireplace Rear Height: 17 inches
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Grate Type: Standard
• Mobile Home Approved: Yes

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-16/19
