Rh Peterson G45-16/19-11P 16/19 inches Triple T Vented Burner with Assembled Safety Valve - Liquid Propane

Product Description

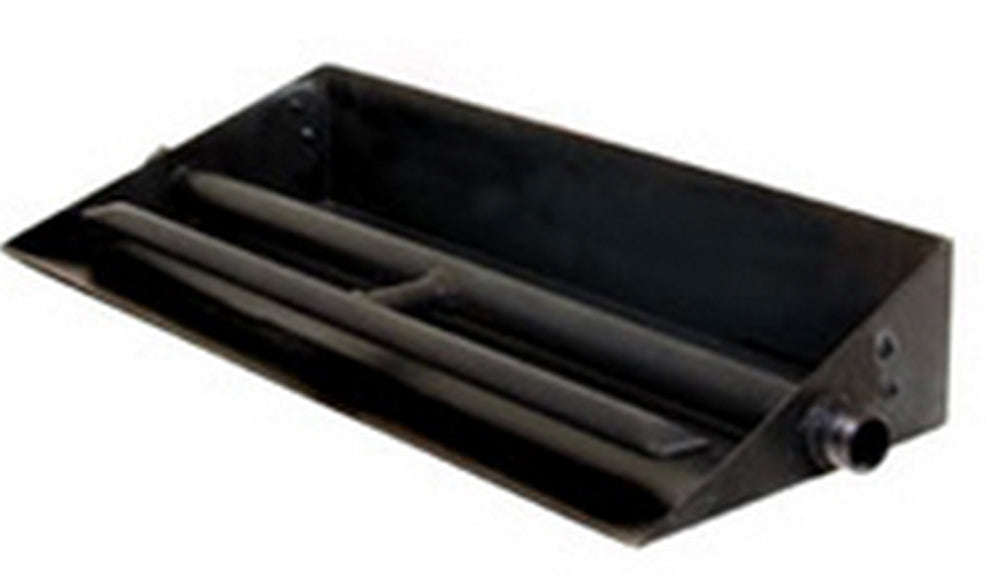

The RH PETERSON G45-16/19-11P is a Triple T Burner with a main burner tube and a smaller front flame burner. The additional front flame allows positioning the burner directly beneath the logs, accentuating the front flame. This burner gives a bed of glowing embers under flames, with three spaces for flames, adding depth to the fire.

• Includes burner pan, grate, and glowing embers
• Comes with sand, burner clips, and flex connector kit
• Includes assembled SPK-26 safety valve with burner

Product Highlights

The G45 burner system provides dancing flames and glowing embers for a realistic fire. Log set sold separately.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-16/19-11P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 16" / 19"
• BTUs (Max.): 30000
• Ignition Type: Manual (No Remote)
• Remote: Not Available
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 29"
• Req. Min. Rear Width (in.): 22"
• Req. Min. Depth (in.): 11"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
