Rh Peterson G45-16/19-02P Triple T Vented Lp Gas Burner

Product Description

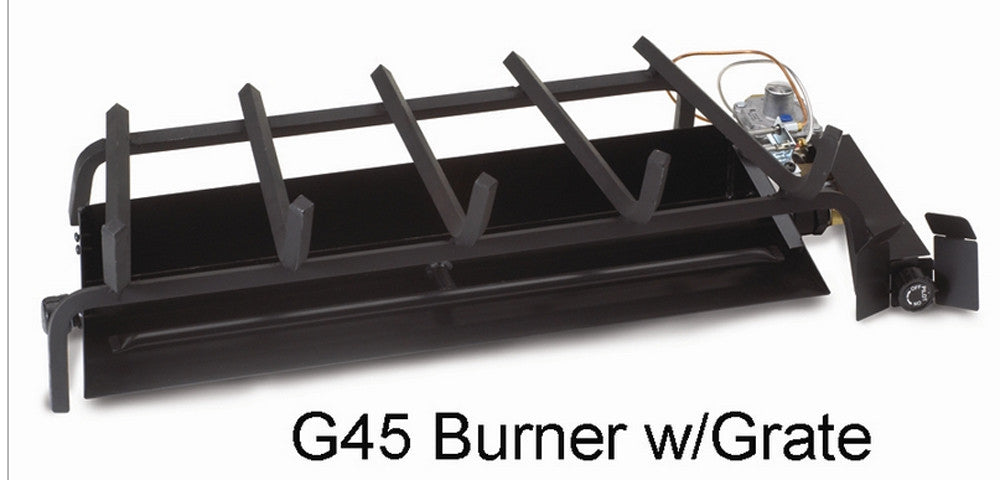

The RH PETERSON G45-16/19-02P is a Triple T vented gas burner designed for single-sided indoor fireplaces fueled by liquid propane. It delivers up to 30,000 BTU/h and uses an electronic ignition system — no standing pilot. The Triple T design features a main burner tube running the length of the unit and a smaller front flame tube that branches off it, creating multiple flame ports for added depth and a realistic ember bed. The included EPK-2 pilotless electronic ignition safety valve system operates via remote control, wall switch, or manual on/off control at the fireplace. A licensed gas technician should handle installation.

This burner is rated for residential indoor use in single-sided fireplaces. It requires a minimum fireplace opening of 29 inches wide, 22 inches deep, and 11 inches tall. Because this is a G45-02P variant, add 2 inches to both front and rear width measurements when sizing the fireplace opening. Depth measurement begins inside the ash lip when one is present. Certified for mobile home installation. The unit accepts 16-inch and 19-inch Real-Fyre log sets sold separately — log set selection is not universal and must match this burner model.

Key Features

• Triple T burner geometry with front flame tube for multi-point flame emergence and glowing ember bed
• 30,000 BTU/h maximum output on liquid propane
• EPK-2 electronic ignition pilotless system included — no standing pilot required
• RR-1 On/Off remote control transmitter and receiver included; upgradeable to RR-2 Deluxe with thermostat and timer (sold separately)
• Certified for mobile home use
• Complete burner system includes pan, grate, glowing embers, vermiculite, burner clips, flex connector kit, and damper clamp

Compatibility

Compatible with Real-Fyre 16-inch and 19-inch log sets only. Burners are certified to work with specific log sets and are not universal. Using a non-compatible log set creates risks of fire, carbon monoxide poisoning, and property damage. Log set is sold separately.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with local codes and the applicable provisions of ANSI Z223.1/NFPA 54 for natural gas and propane appliances. Shut off the gas supply and allow the system to cool completely before servicing any components. Verify inlet gas pressure falls within the 11.0 to 13.0 inches water column range before commissioning. The fireplace damper must be secured open using the included damper clamp during all burner operation.

Technical Specifications

• Fuel Type: Liquid Propane (LP)
• BTU/h (Max.): 30,000
• Ignition Type: Electronic Ignition (EPK-2 pilotless system)
• Remote Control: Included (RR-1 On/Off)
• Venting Type: Vented
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Allowable Log Set Sizes: 16 inches / 19 inches
• Minimum Fireplace Width: 29 inches (front), add 2 inches for -02P variant
• Minimum Fireplace Depth: 22 inches
• Minimum Fireplace Height: 11 inches
• Gas Connection Size: 1/2 inch
• Inlet Gas Pressure (Min.): 11.0 inches w.c.
• Inlet Gas Pressure (Max.): 13.0 inches w.c.
• Certification: Mobile Home Approved

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-16/19-02P
