Rh Peterson G4-18/20P Real-Fyre G4 18 inches / 20 inches Glowing Ember Vented Burner with On/Off Remote - Liquid Propane

Product Description

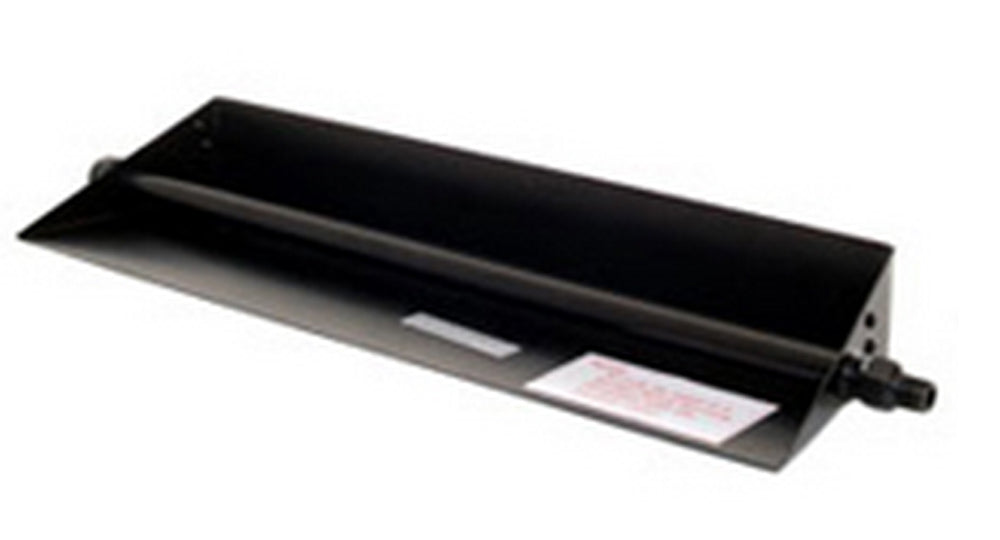

The RH PETERSON G4-18/20P Real-Fyre G4 burner is a glowing ember burner system that features a single tube burner that runs through the center. Included is the APK-11 valve kit, a basic on/off remote safety pilot kit with a RR-1 On/Off remote control transmitter and receiver. The log set is sold separately.

• Features a single tube burner that runs through the center.

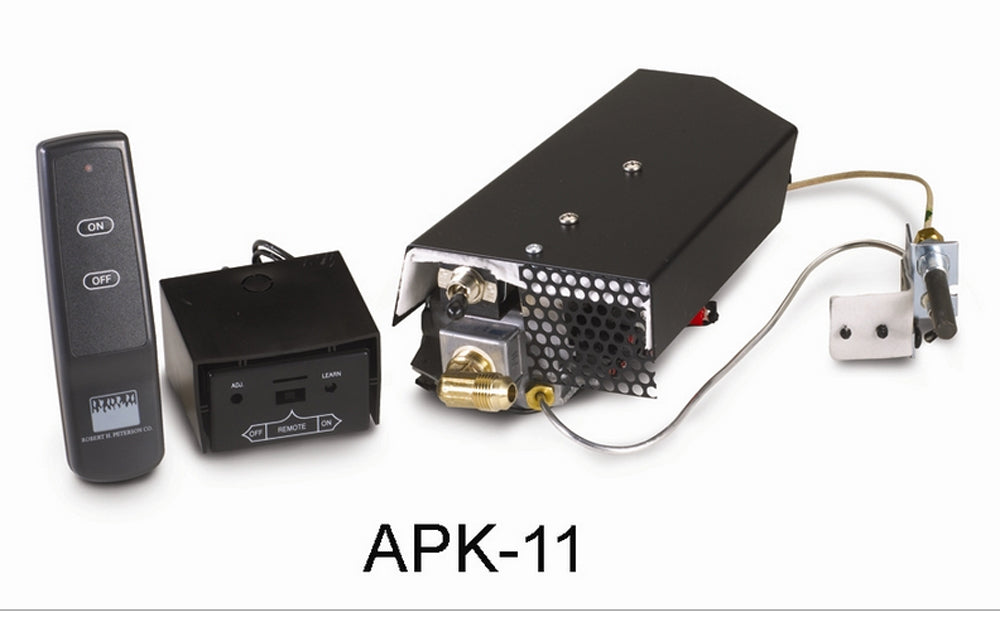

• APK-11 valve kit included.
• Basic RR-1 On/Off remote control transmitter and receiver included.

Product Highlights

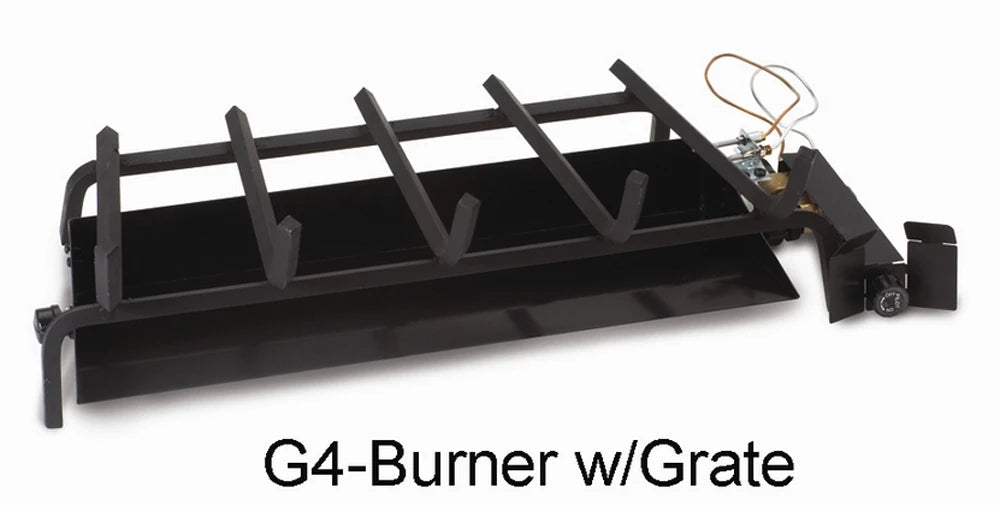

The G4 burner gives you dancing flames across the length of the burner. It includes a burner pan, grate, glowing embers, vermiculite, burner clips, flex connector kit, and damper clamp.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G4-18/20P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 18" / 20"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 50000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): NA
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Requirements for 18" or 20" Logs Req. Min. Front Width (in.): 32"
• Req. Min. Rear Width (in.): 26"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 17"
