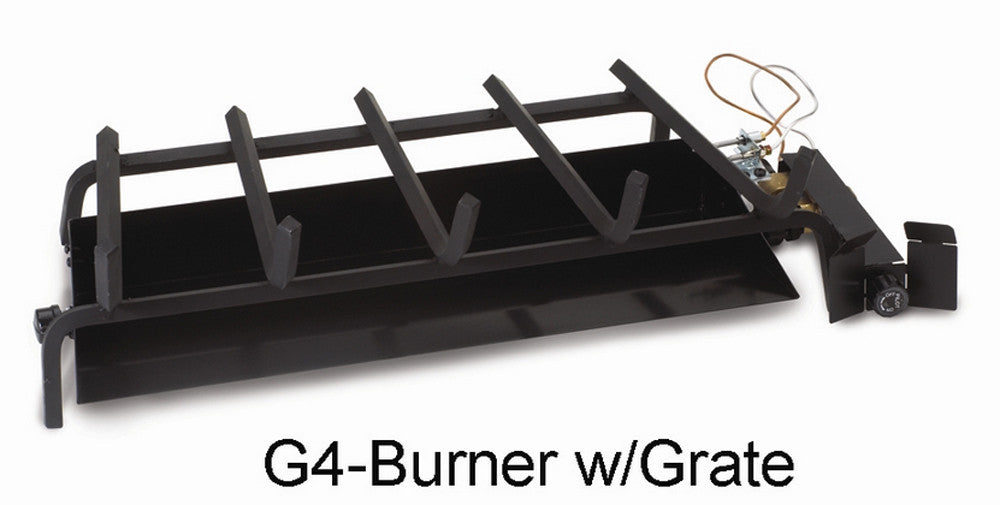

Rh Peterson G4-18/20 Vented Gas Burner 75000 Btu/h Natural Gas

Product Description

The RH PETERSON G4-18/20 is a manual-ignition, vented natural gas burner designed for single-sided indoor fireplaces. It uses a single-tube burner that runs through the center of the burner pan, producing flames that travel across the full length of the tube and a glowing ember bed at the base. Output reaches 75,000 BTU/h at maximum. This is a base-model burner system intended for traditional log set installations and is approved for use in mobile homes. It is installed by qualified gas technicians and requires a compatible Real-Fyre log set, sold separately.

The G4-18/20 is rated for use with 18-inch and 20-inch Real-Fyre gas log sets in single-sided, indoor, vented fireplace applications. It is approved for natural gas only and requires an inlet gas pressure between 5.0 inches water column (w.c.) and 10.5 inches w.c. The burner does not include remote capability and has no electronic ignition — it is a match-light system. This burner is certified for mobile home installations. Note that this burner is certified to function with specific log sets only; using it with a non-compatible log set creates serious risks including fire, carbon monoxide exposure, and property damage.

Key Features

• Single-tube center burner produces full-length flame travel across the log grate
• Glowing ember system included for visual depth at the burner base
• 75,000 BTU/h maximum output on natural gas
• Manual match-light ignition — no remote, no electronic components
• Mobile home approved for broader installation eligibility
• Kit includes burner pan, grate, glowing embers, sand, burner clips, flex connector kit, and damper clamp

Compatibility

Compatible with Real-Fyre gas log sets sized 18 inches and 20 inches only. This burner is certified to work with specific log sets and is not universal. Consult the manufacturer compatibility list before pairing with any log set. Log set is not included.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with applicable local codes and the National Fuel Gas Code (NFPA 54 / ANSI Z223.1). Shut off the gas supply at the main valve before any connection work. Verify the fireplace is a vented, single-sided unit with an operable damper before proceeding. Do not operate the burner without a compatible, manufacturer-approved log set in place.

Technical Specifications

• BTU/h (Max.): 75,000 BTU/h
• Fuel Type: Natural Gas
• Ignition Type: Manual Match Light
• Allowable Log Set Sizes: 18 inches / 20 inches
• Gas Connection Size: 1/2 inch
• Inlet Gas Pressure (Min.): 5.0 inches w.c.
• Inlet Gas Pressure (Max.): 10.5 inches w.c.
• Venting Type: Vented
• Location of Use: Indoor
• Fireplace Style: Single Sided
• Certified Usage: Mobile Home Approved

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G4-18/20
