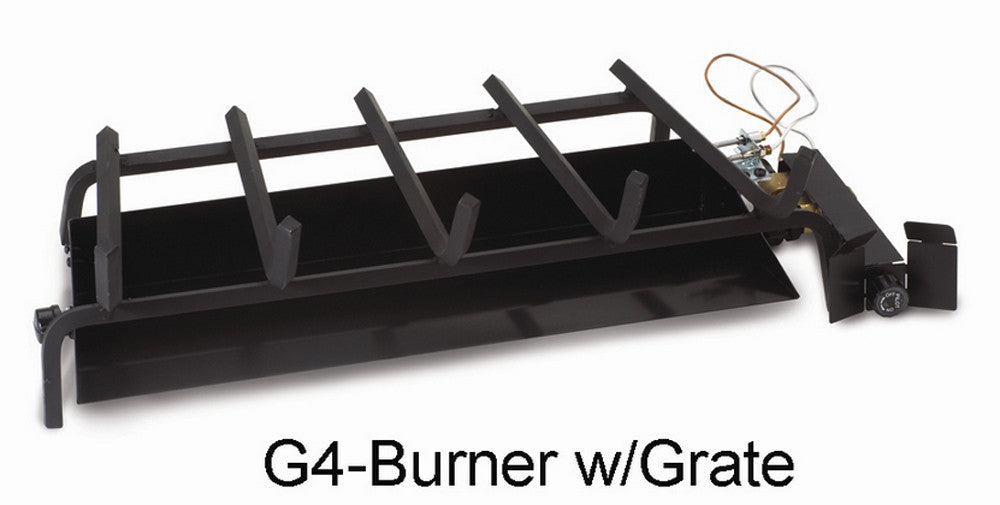

Rh Peterson G4-12 Glowing Ember Vented Gas Burner 25000 Btu/h

Product Description

The RH PETERSON G4-12 is a vented, natural gas glowing ember burner system designed for single-sided indoor fireplaces. It features a single tube burner that runs through the center of the pan, producing flames that dance across the full length of the tube. Rated at 25,000 BTU/h maximum output, this match-light burner operates on natural gas with an inlet pressure range of 5.0 to 10.5 inches water column. The G4-12 is a base-model burner and does not produce the same ember glow intensity or front flame effect as higher-tier G45 series burners. Licensed gas technicians and qualified fireplace installers are the intended trades for this equipment.

The G4-12 is rated for indoor, single-sided fireplace installations and is approved for mobile home use. It is sized for 12-inch log sets and requires a compatible Real-Fyre gas log set, which is sold separately. This burner is certified to function only with specific compatible log sets — using it with a non-compatible log set creates serious risks including fire, carbon monoxide poisoning, and property damage. The match-light ignition means no electronic igniter or remote control is included or available for this model.

Key Features

• Single tube center burner produces flames across the full burner length
• 25,000 BTU/h maximum output on natural gas
• Match-light ignition — no electronic components to service or replace
• Mobile home approved for eligible installations
• Includes burner pan, grate, glowing embers, sand, burner clips, flex connector kit, and damper clamp
• Vented design for single-sided indoor fireplaces only

Compatibility

Designed for use with Real-Fyre gas log sets sized for 12-inch applications. This burner is not universal — it is certified to work only with specific compatible log sets. The log set is sold separately and must be verified for compatibility before installation.

Installation Notes

Installation must be performed by a licensed gas technician or qualified fireplace professional in accordance with local codes and the appliance manufacturer instructions. Shut off the gas supply completely before making any connections or adjustments. The 1/2-inch gas connection must be leak-tested after assembly using an approved method — never use an open flame to check for leaks. Ensure the damper clamp is installed as directed to prevent the damper from being closed while the burner is in use.

Technical Specifications

• Fuel Type: Natural Gas (NG)
• Maximum Output: 25,000 BTU/h
• Ignition Type: Match Light
• Allowable Log Set Size: 12 inches
• Gas Connection Size: 1/2 inch
• Inlet Gas Pressure Minimum: 5.0 inches water column
• Inlet Gas Pressure Maximum: 10.5 inches water column
• Venting Type: Vented
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Certified Usage: Mobile Home Approved
• Remote Control: Not Available

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G4-12
