Rh Peterson G31-24/30A 24/30 inches Three Tiered Vented Burner with Manual Valve

Product Description

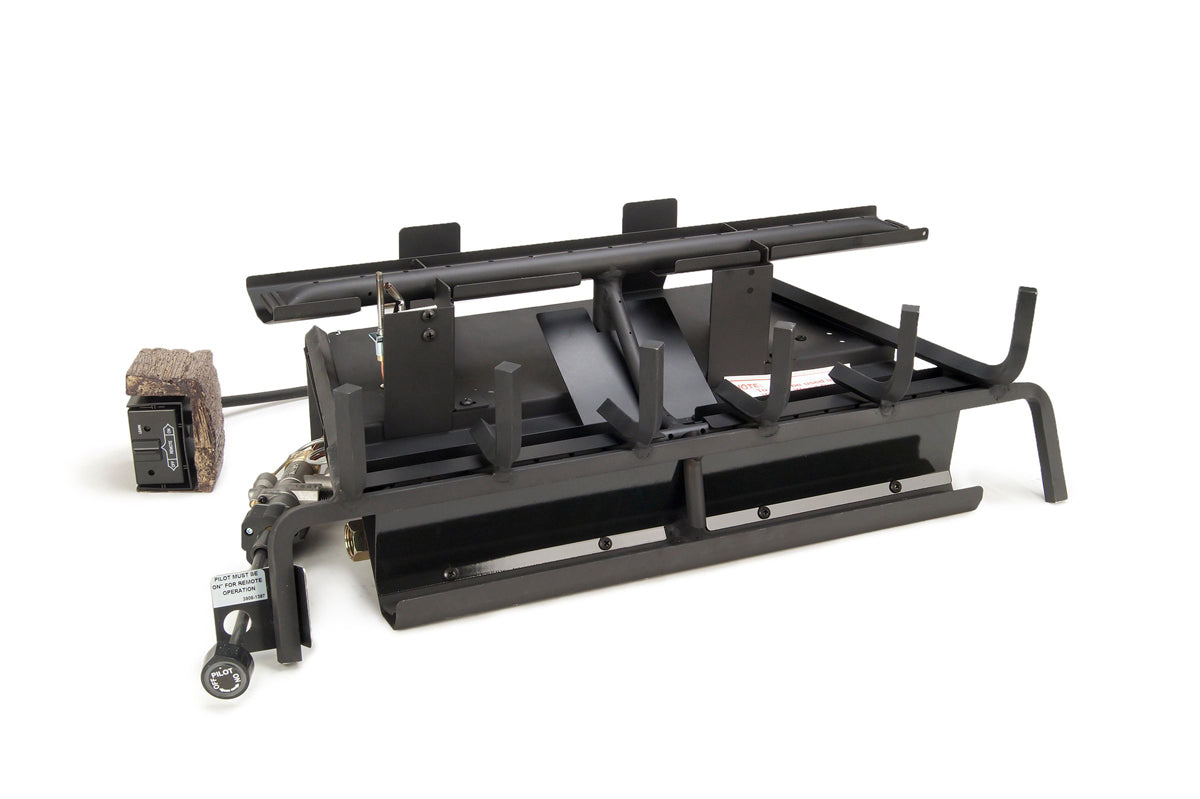

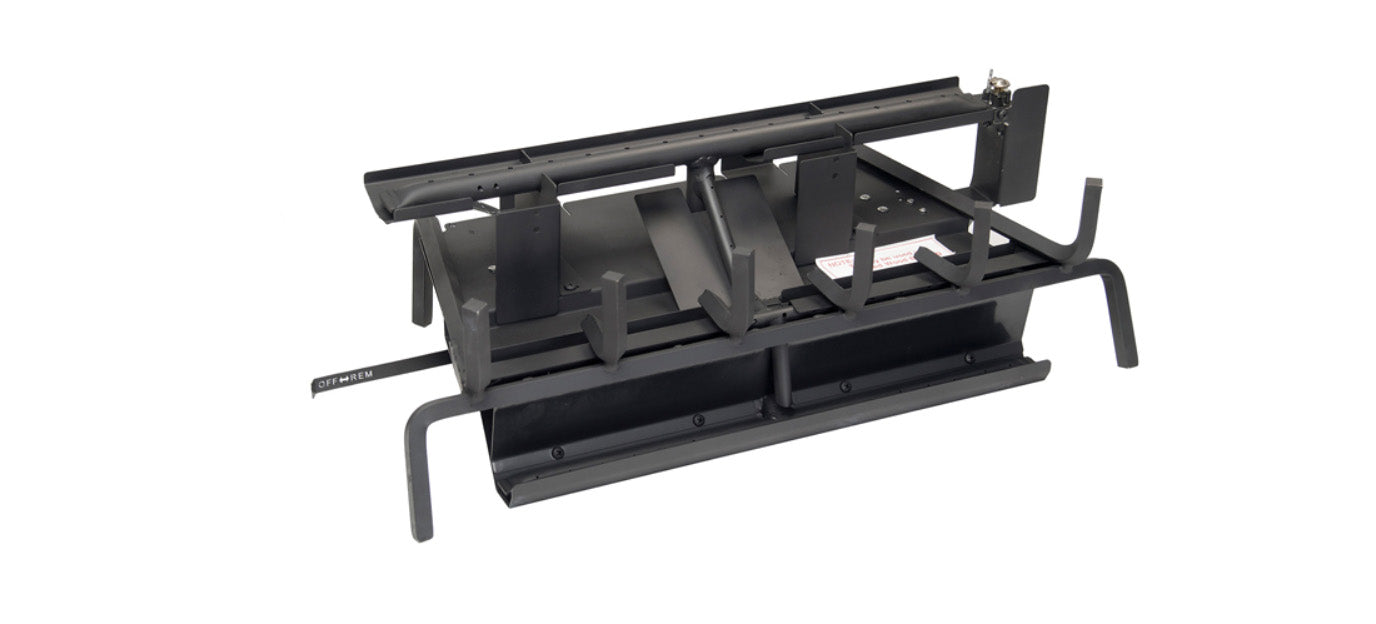

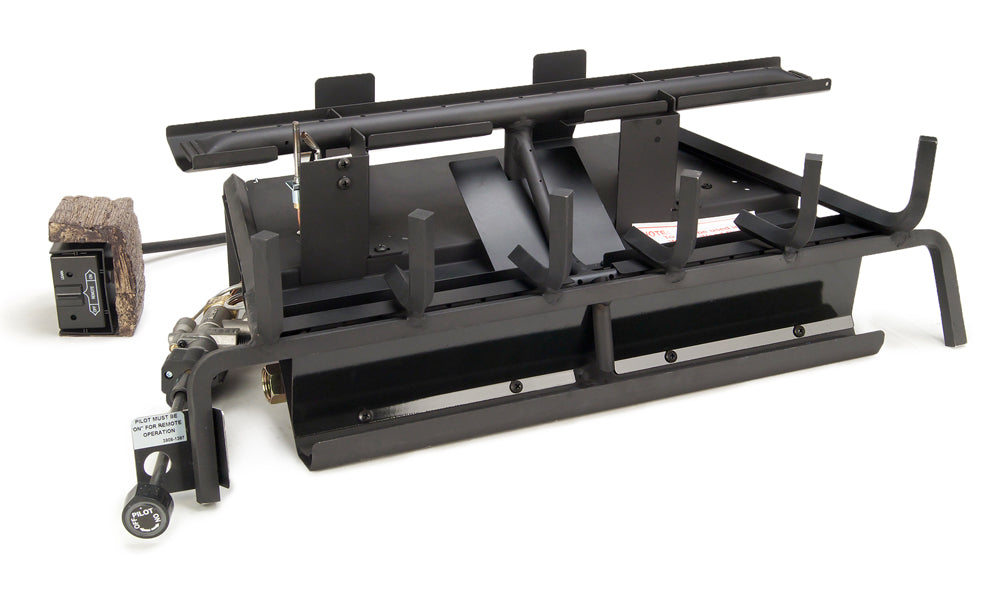

The RH PETERSON G31-24/30A is a three-tiered burner with a manual valve and standing pilot designed for use with natural gas. This burner creates high, robust flames while using fewer BTUs than other vented burner systems. It includes a burner pan with an integrated grate, sand, glowing embers, lava fyre coals, and a flex connector kit.

• Three Tiered Burner
• Manual burner and standing pilot
• For use with Natural Gas

Product Highlights

Creates beautiful, high, robust flames while using fewer BTUs. Compatible with Real Fyre log sets.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G31-24/30A

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 24" / 30"
• Allowable Log Sets: Charred Series
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 50000
• Ignition Type: Manual (No Remote)
• Remote: Not Available
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.) - 24": 34"
• Req. Min. Front Width (in.) - 30": 36"
• Req. Min. Rear Width (in.) - 24": 25"
• Req. Min. Rear Width (in.) - 30": 27"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
• Brand Name: RH PETERSON
• Part Number: G31-24-30A
• Model Number: G31-24-30A
• Pieces Included: Advanced 3-Tiered Burner, Porcelainized Reflective Front Panel, Custom Grate, Bryte Coals, Glowing Embers, Sand, Connector Kit and Damper Clamp, Manual Pilot Kit
