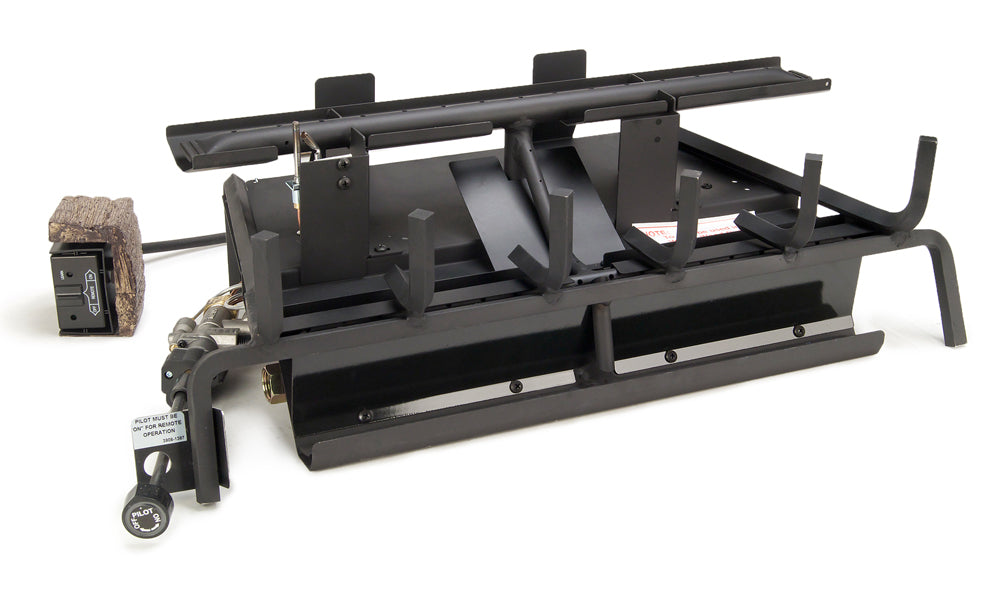

Rh Peterson G31-24/30-17P Burner G31 Triple Assembly 24/30 Inch with 17P Valve Propane

Product Description

The RH PETERSON G31-24/30-17P burner is a triple assembly 24/30 inch burner with a 17P valve for propane. The G31 burner system creates high and full-bodied flames while using fewer BTUs than other vented burner systems. It features a 3-Tiered burner design for a high, full-bodied flame, with a compact footprint to fill your fireplace.

• Millivolt valve with a standing pilot and variable flame control
• For use with Liquid Propane
• Beautiful, high, robust flames created, while using fewer BTUs than other vented burner systems

Product Highlights

The burner has a porcelainized reflective front panel to provide a deeper ember bed reflection. It is compatible with Mountain Crest Oak (MCO), Mountain Crest Split Oak (MCS), Charred Oak (CHD), Charred Split (CHS), and other gas log sets.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G31-24/30-17P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 24" / 30"
• Allowable Log Sets: Charred Series
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 50000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Variable Flame Remote Included
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): NA
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.) - 24": 34"
• Req. Min. Front Width (in.) - 30": 36"
• Req. Min. Rear Width (in.) - 24": 25"
• Req. Min. Rear Width (in.) - 30": 27"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
• Compatible Log Sets: Mountain Crest Oak (MCO), Mountain Crest Split Oak (MCS), Charred Oak (CHD), Charred Split (CHS), Charred Angel Oak (CHNA), Charred Angel Split Oak (CHNS), Charred American Oak (CHAO), Charred Royal English Oak (CHB), Charred Mountain Oak (CHMBW)
