Rh Peterson G31-24/30-02P Burner Triple Assembly 24/30 Inch

Product Description

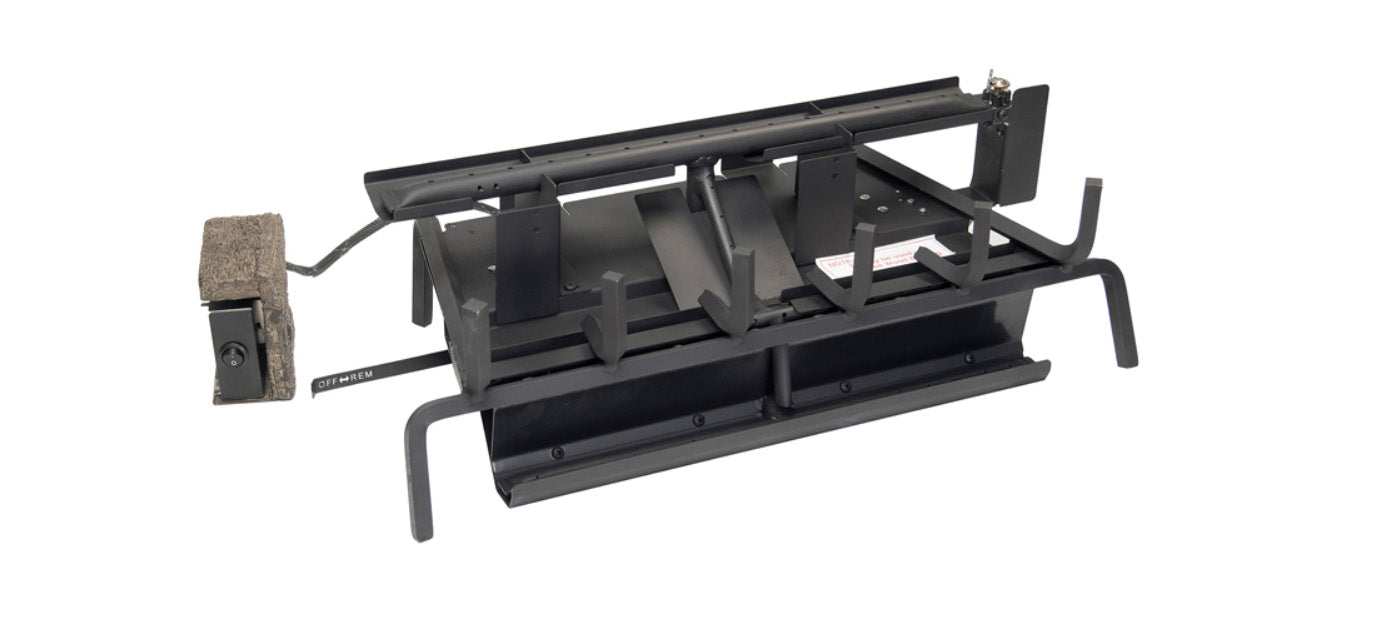

The RH PETERSON G31-24/30-02P is a triple assembly burner designed for 24 and 30-inch fireplaces. This burner features an electronic valve with intermittent pilot and on/off remote, and is for use with liquid propane. It creates beautiful, high, robust flames while using fewer BTUs than other vented burner systems. The burner system includes vermiculite, glowing embers, lava granules, and a flex connector kit.

• Three Tiered Burner
• Electronic Valve with Intermittent Pilot and on/off Remote
• For use with Liquid Propane

Product Highlights

Triple assembly burner for 24/30-inch fireplaces with electronic ignition and remote control, designed for liquid propane.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G31-24/30-02P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 24" / 30"
• Allowable Log Sets: Charred Series
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 50000
• Ignition Type: Electronic Ignition
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.) - 24": 34"
• Req. Min. Front Width (in.) - 30": 36"
• Req. Min. Rear Width (in.) - 24": 25"
• Req. Min. Rear Width (in.) - 30": 27"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
