Rh Peterson G31-24/30-02 Vented Gas Log Burner 50000 Btu/h

Product Description

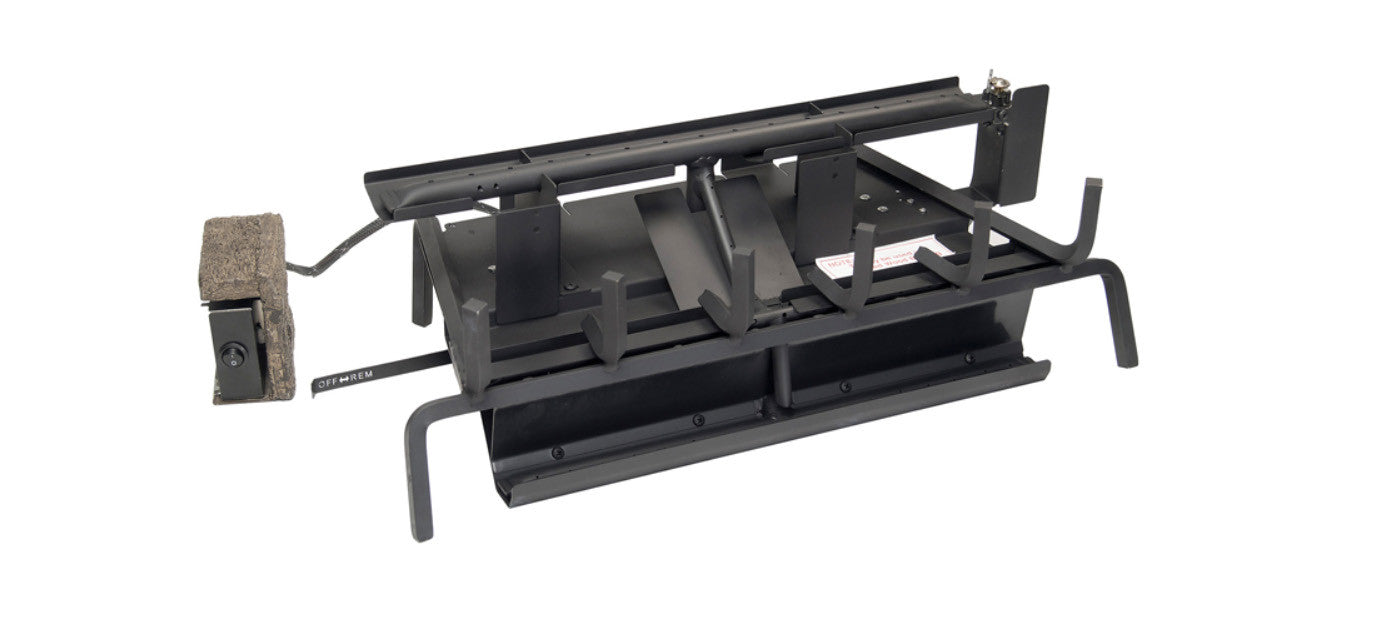

The RH PETERSON G31-24/30-02 is a three-tiered vented gas log burner designed for installation in a wood-burning fireplace equipped with a natural gas supply line. Rated at 50,000 BTU/h maximum output, the G31-24/30-02 uses an electronic valve with intermittent pilot ignition and includes an on/off remote system with receiver, transmitter, and batteries. It accommodates either 24-inch or 30-inch compatible gas log sets, offering flexibility for different fireplace openings. The burner is engineered to produce high, robust flame patterns — top flames approximately 3 to 5 inches above and between the logs, with the center flame being the tallest — while consuming fewer BTUs than comparable vented burner systems. A licensed gas technician or qualified HVAC professional should perform installation.

The G31-24/30-02 is rated for indoor, single-sided fireplaces using vented natural gas. It carries Mobile Home Approved certification, making it suitable for that application in addition to standard residential use. Minimum fireplace dimensions for the 24-inch log set configuration are: 35 inches front width, 25 inches rear width, 15 inches depth (measured from inside the lip), and 17 inches height. For the 30-inch log set configuration, minimum dimensions are: 39 inches front width, 28 inches rear width, 15 inches depth, and 17 inches height. Confirming fireplace dimensions before selecting log set size is required. The log set is sold separately.

Key Features

• 50,000 BTU/h maximum output with a three-tiered burner pan for layered flame presentation
• Electronic ignition with intermittent pilot — no standing pilot flame required
• On/off remote kit included: receiver, transmitter, and batteries
• Accepts 24-inch or 30-inch compatible gas log sets from a defined compatibility list
• Mobile Home Approved certification for expanded installation eligibility
• Kit includes burner pan with integrated grate, sand, glowing embers, Lava Fyre Coals, lava granules, Bryte Coals, flex connector kit, and damper clamp

Compatibility

The G31-24/30-02 burner is certified for use only with specific compatible log sets. Designed log sets include Mountain Crest Oak (MCO24 or MCO30), Mountain Crest Split Oak (MCS24 or MCS30), Charred Angel Oak (CHNA24 or CHNA30), and Charred Angel Split Oak (CHNS24 or CHNS30). Additional compatible log sets include Charred Oak (CHD24 or CHD30), Charred American Oak (CHAO24 or CHAO30), Charred Royal English Oak (CHB24 or CHB30), and Charred Split (CHS24 or CHS30). Use with any non-listed log set creates serious risk of fire, carbon monoxide exposure, and property damage. Log set is sold separately.

Installation Notes

Installation must be performed by a licensed gas technician or qualified professional in accordance with local codes and the appliance manufacturer instructions. Shut off the gas supply at the source before making any connections to the burner or flex connector. The 1/2-inch gas connection must be leak-tested after assembly before the appliance is placed into service. A damper clamp is included and must be installed to prevent the fireplace damper from being fully closed while the gas appliance is in use.

Technical Specifications

• Fuel Type: Natural Gas (NG)
• Maximum BTU Output: 50,000 BTU/h
• Ignition Type: Electronic Ignition with Intermittent Pilot
• Remote Control: On/Off Remote Included
• Allowable Log Set Sizes: 24 inches / 30 inches
• Gas Connection Size: 1/2 inch
• Inlet Gas Pressure (Minimum): 5.0 inches w.c.
• Inlet Gas Pressure (Maximum): 10.5 inches w.c.
• Venting Type: Vented
• Location of Use: Indoor
• Fireplace Style: Single Sided
• Certification: Mobile Home Approved

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G31-24/30-02
