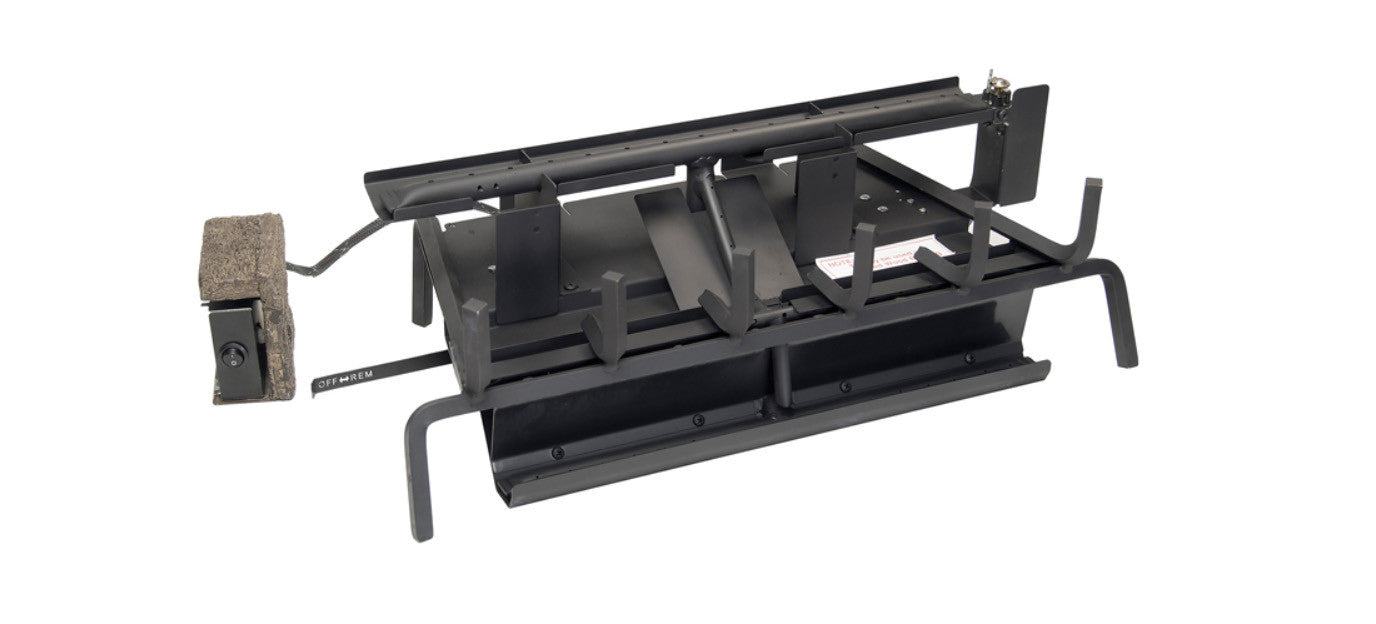

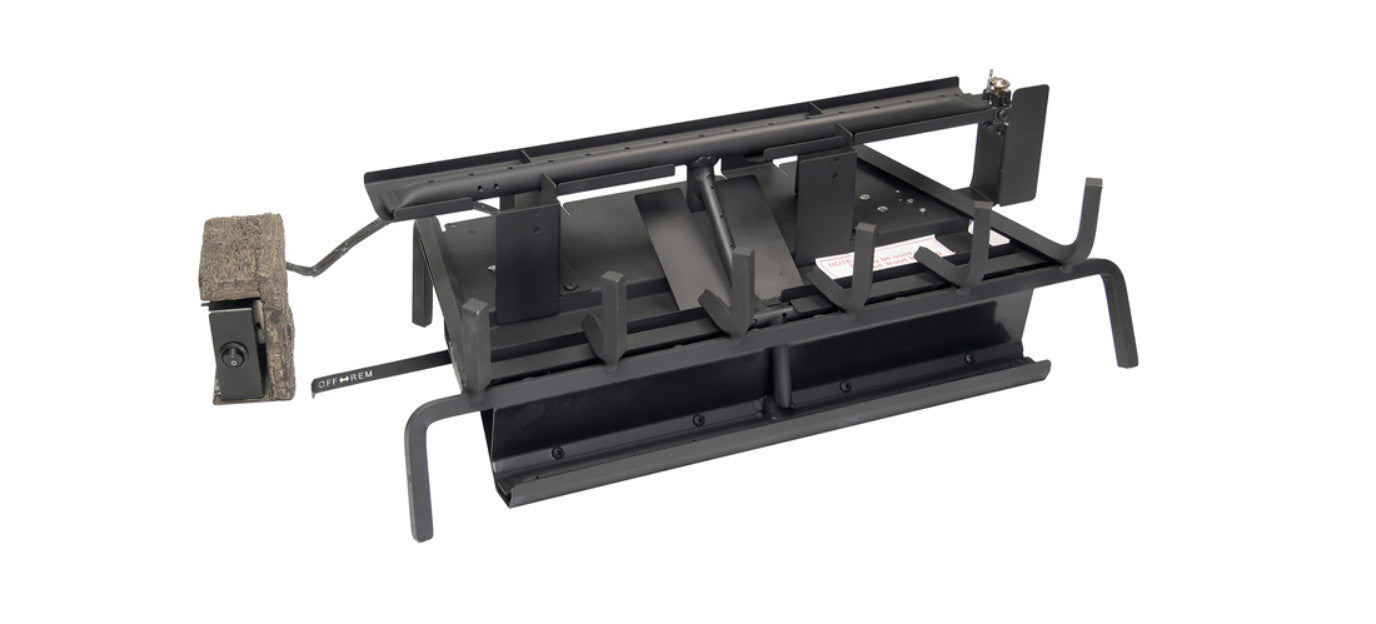

Rh Peterson G31-18/20-2VT Vented Gas Burner 40000 Btu/h

Product Description

The RH PETERSON G31-18/20-2VT is a three-tiered vented natural gas burner designed for installation in a wood-burning fireplace equipped with a gas line. It delivers up to 40,000 BTU/h while producing tall, layered flames — top flames reaching approximately 3 to 5 inches above and between the logs, with middle flames at or below the top of the front log and ember flames approximately 0.25 to 1 inch above the embers. The burner uses an electronic valve with intermittent pilot ignition and includes a variable flame remote for convenient flame-height adjustment without manual valve access. Installation is performed by a licensed gas technician.

This burner is rated for indoor, single-sided vented fireplaces burning natural gas. It is also available in a liquid propane configuration. The G31-18/20-2VT is certified for mobile home use. Minimum fireplace dimensions required for installation are 25 inches front width, 20 inches rear width, 15 inches depth measured from inside the lip, and 17 inches height. The burner is sized for use with 18-inch gas log sets only. Designed log sets include Mountain Crest Oak (MCO18), Mountain Crest Split Oak (MCS18), Charred Angel Oak (CHNA18), and Charred Angel Split Oak (CHNS18). Additional compatible log sets include Charred Oak (CHD18/20), Charred American Oak (CHAO18/20), Charred Royal English Oak (CHB18/20), and Charred Split (CHS18/20).

Key Features

• Three-tiered burner design produces high, layered flames while consuming fewer BTUs than comparable vented systems
• Electronic valve with intermittent pilot ignition for reliable, repeatable startup
• Variable flame remote included — receiver, transmitter, and batteries all in the kit
• Rated up to 40,000 BTU/h on natural gas
• Certified for mobile home installation
• Kit includes burner pan with integrated grate, sand, lava fyre coals, lava granules, glowing embers, bryte coals, flex connector kit, damper clamp, and remote kit

Compatibility

This burner is certified for use with specific log sets only and is NOT universal. Compatible 18-inch log sets include Mountain Crest Oak (MCO18), Mountain Crest Split Oak (MCS18), Charred Angel Oak (CHNA18), Charred Angel Split Oak (CHNS18), Charred Oak (CHD18/20), Charred American Oak (CHAO18/20), Charred Royal English Oak (CHB18/20), and Charred Split (CHS18/20). Using this burner with a non-compatible log set creates risk of fire, carbon monoxide poisoning, and property damage. Log set is sold separately.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with the applicable local gas code and NFPA 54. Shut off the gas supply at the main valve and verify the line is depressurized before making any connections. The 0.5-inch gas connection must be properly sized and leak-tested after assembly. Confirm the fireplace damper is secured open using the included damper clamp before placing the burner into service.

Technical Specifications

• Fuel Type: Natural Gas
• Maximum BTU/h: 40,000
• Ignition Type: Electronic Ignition with Intermittent Pilot
• Remote: Variable Flame Remote Included
• Allowable Log Set Sizes: 18 inches / 20 inches
• Gas Connection Size: 0.5 inches
• Inlet Gas Pressure (Min.): 5.0 inches w.c.
• Inlet Gas Pressure (Max.): 10.5 inches w.c.
• Venting Type: Vented
• Location of Use: Indoor
• Fireplace Style: Single Sided
• Certifications: Mobile Home Approved

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G31-18/20-2VT
