Rh Peterson G31-18/20-17P Vented Lp Gas Log Burner 40000 Btu/h

Product Description

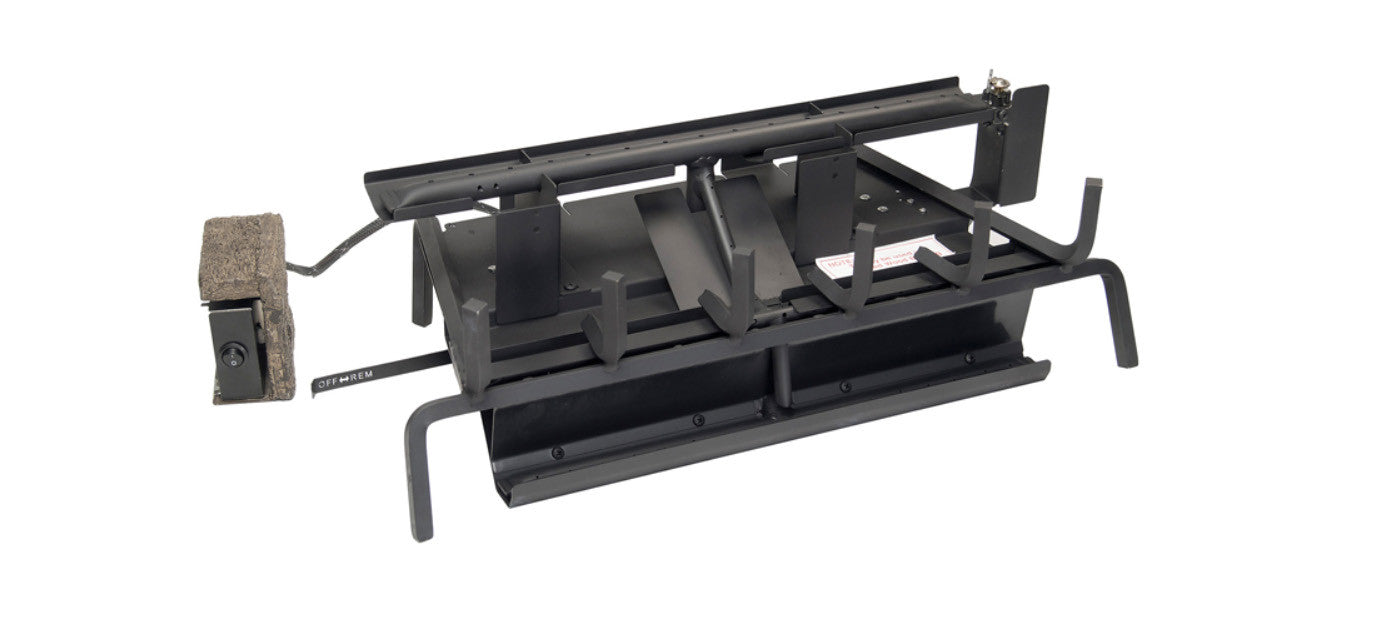

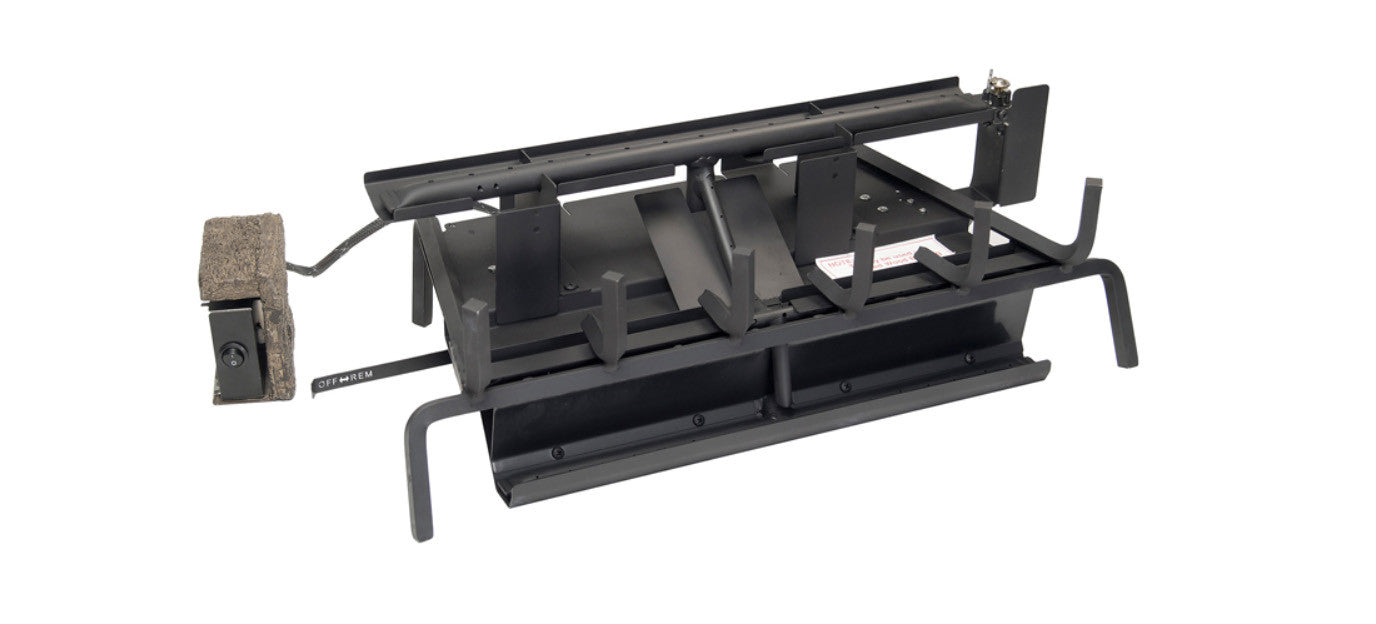

The RH PETERSON G31-18/20-17P is a three-tiered vented gas log burner designed for liquid propane (LP) operation in single-sided, indoor wood-burning fireplaces equipped with a gas line. It operates on a millivolt standing pilot system with a variable flame control valve and includes a variable flame remote kit. Maximum heat output is 40,000 BTU/h. The three-tier burner design produces tall, robust center flames approximately 3 to 5 inches above and between the logs, with middle flames at or below the top of the front log and ember flames approximately 0.25 to 1 inch above the ember bed. A licensed gas technician should perform installation in accordance with applicable local codes.

This burner is approved for use in mobile homes and is rated for indoor, single-sided vented fireplace applications only. It accepts 18-inch gas log sets and is designed to work with the following specific log sets: Mountain Crest Oak (MCO18), Mountain Crest Split Oak (MCS18), Charred Angel Oak (CHNA18), and Charred Angel Split Oak (CHNS18). Additional compatible log sets include Charred Oak (CHD18/20), Charred American Oak (CHAO18/20), Charred Royal English Oak (CHB18/20), and Charred Split (CHS18/20). Log sets are sold separately. Minimum fireplace dimensions required are 25 inches front width, 20 inches rear width, 15 inches depth measured from inside the lip, and 17 inches height.

Key Features

• Three-tiered burner produces tall center flames with layered ember and mid-level flame zones
• Millivolt standing pilot system with variable flame control — no line voltage required at the valve
• Variable flame remote kit included: receiver, transmitter, and batteries
• Rated for liquid propane at up to 40,000 BTU/h with inlet gas pressure range of 11.0 to 13.0 inches water column
• Mobile Home Approved for certified safe use in qualifying installations
• Kit includes burner pan with integrated grate, vermiculite, glowing embers, Lava Fyre Coals, lava granules, Bryte Coals, flex connector kit, and damper clamp

Compatibility

The G31-18/20-17P is certified for use only with specific compatible 18-inch log sets. Designated log sets include Mountain Crest Oak (MCO18), Mountain Crest Split Oak (MCS18), Charred Angel Oak (CHNA18), Charred Angel Split Oak (CHNS18), Charred Oak (CHD18/20), Charred American Oak (CHAO18/20), Charred Royal English Oak (CHB18/20), and Charred Split (CHS18/20). Using this burner with a non-compatible log set creates risk of fire, carbon monoxide poisoning, and property damage. Do not substitute log sets not listed above.

Installation Notes

Installation must be performed by a qualified gas technician and comply with all applicable local, state, and national gas codes. Before servicing or installing, shut off the gas supply at the source and verify the fireplace meets the minimum dimensional requirements stated above. This burner requires a vented, single-sided wood-burning fireplace fitted with a gas supply line — it is not approved for vent-free or direct-vent applications. Confirm LP inlet pressure is within the specified range using a manometer before placing the system in service.

Technical Specifications

• Fuel Type: Liquid Propane (LP)
• Maximum Output: 40,000 BTU/h
• Ignition Type: Millivolt Standing Pilot
• Remote: Variable Flame Remote Included
• Venting Type: Vented
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Allowable Log Set Sizes: 18 inches and 20 inches
• Gas Connection Size: 0.5 inches
• Inlet Gas Pressure (Min.): 11.0 inches w.c.
• Inlet Gas Pressure (Max.): 13.0 inches w.c.
• Certified Usage: Mobile Home Approved
• Media Style: Traditional Log Set

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G31-18/20-17P
