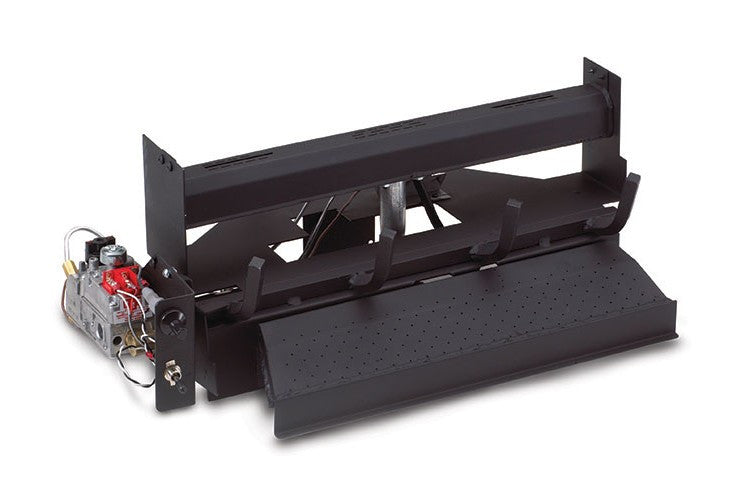

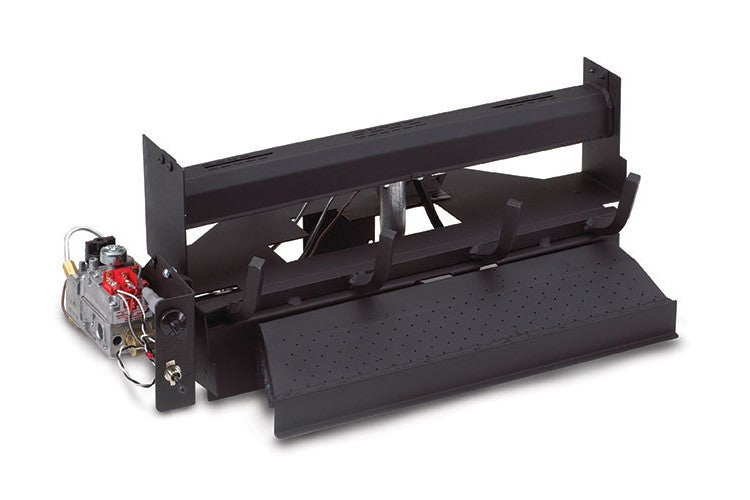

Rh Peterson G18-24/30 Vent Free Gas Burner 30000 Btu/h

Product Description

The RH PETERSON G18-24/30 is a vent-free, manual-control natural gas burner designed for indoor single-sided fireplaces. Rated at 30,000 BTU/h maximum output, it uses manual ignition with no remote option and is compatible with 24-inch and 30-inch Evening Fyre Log Sets sold separately. The unit ships pre-assembled with a control valve, an ODS (oxygen depletion sensor) pilot safety system, a custom grate, and a connector kit. Glowing embers, Bryte Coals, and Lava-Fyre Granules are included. This burner carries ANSI certification and is approved for mobile home installation. Natural gas only; a liquid propane variant is available under a separate part number.

This burner is intended strictly for indoor, single-sided fireplace applications. It accommodates traditional log set media in the Charred Series line. Minimum fireplace opening requirements vary by log set size: for 24-inch log sets, the firebox must measure at least 30 inches front width, 20 inches rear width, 14 inches depth, and 17 inches height. For 30-inch log sets, the firebox must measure at least 36 inches front width, 26 inches rear width, 14 inches depth, and 17 inches height. Vent-free products cannot be shipped to California. State and local codes in some jurisdictions prohibit vent-free appliances. Verify local building codes before ordering or installing.

Key Features

• 30,000 BTU/h maximum output on natural gas
• Manual ignition control — no remote required or available
• Integrated ODS pilot safety system shuts off gas if oxygen levels drop
• Pre-assembled control valve reduces installation time
• ANSI certified and mobile home approved
• Includes custom grate, connector kit, glowing embers, Bryte Coals, and Lava-Fyre Granules
• Accepts 24-inch and 30-inch Charred Series log sets

Compatibility

Designed for use with RH PETERSON 24-inch and 30-inch Evening Fyre Log Sets in the Charred Series only. Burners are certified to work with specific log sets and are not universal. Using this burner with a non-compatible log set creates risk of fire, carbon monoxide poisoning, and property damage. Log sets are sold separately.

Installation Notes

Installation must be performed by a qualified gas technician or licensed professional in accordance with local building codes and the appliance manufacturer instructions. Shut off the gas supply at the main valve and verify zero pressure before making any connections. The 1/2-inch gas connection must be supplied within the inlet pressure range of 5.0 to 10.5 inches water column. Vent-free appliances require no flue connection, but adequate room ventilation and compliance with local vent-free regulations are mandatory before placing the unit in service.

Technical Specifications

• Fuel Type: Natural Gas
• Maximum BTU Output: 30,000 BTU/h
• Ignition Type: Manual (No Remote)
• Venting Type: Vent Free
• Gas Connection Size: 1/2 inches
• Inlet Gas Pressure (Min.): 5.0 inches w.c.
• Inlet Gas Pressure (Max.): 10.5 inches w.c.
• Allowable Log Set Sizes: 24 inches / 30 inches
• Allowable Log Sets: Charred Series
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Certified Usage: Mobile Home Approved
• Certification: ANSI

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G18-24/30
