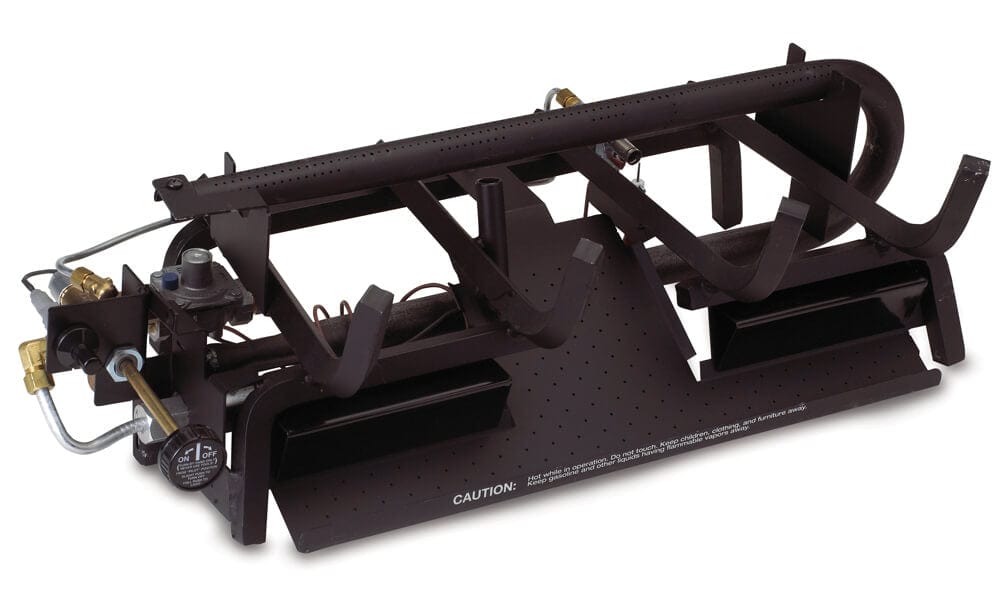

Rh Peterson G10-24/30-15 Burner G10 Vent-Free 24/30 Inch Natural Gas Variable Remote

Product Description

The RH PETERSON G10-24/30-15 is a vent-free burner with a variable flame remote control designed for use with 24" and 30" Charred Series Log Sets. Operating on natural gas, it delivers 19,000 (L) / 37,000 (H) BTUs. The ANSI-certified burner includes a pre-assembled millivolt control valve with variable flame height remote and an ODS safety system.

• Vent-free burner
• Variable flame remote control
• For use with 24" and 30" Charred Series Log Sets

Product Highlights

This natural gas burner features a variable flame height remote, standing pilot, and is compatible with Charred Series Log Sets.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G10-24/30-15

Technical Specifications

• MPN: G10-24/30-15
• Brand: RH Peterson
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vent Free
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 24" / 30"
• Allowable Log Sets: Charred Series
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 37000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Variable Flame Remote Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.) - 24": 28"
• Req. Min. Front Width (in.) - 30": 34"
• Req. Min. Rear Width (in.): 20"
• Req. Min. Depth (in.): 14"
• Req. Min. Height (in.): 18"
• Chimney Height (Min. ft.): 15'
• Material: Steel
• Model Number: CHFR-24G10-24/30-15
