Rh Peterson G10-24/30-01V Burner G10 Vent-Free 24/30 Inch Natural Gas Electronic Remote

Product Description

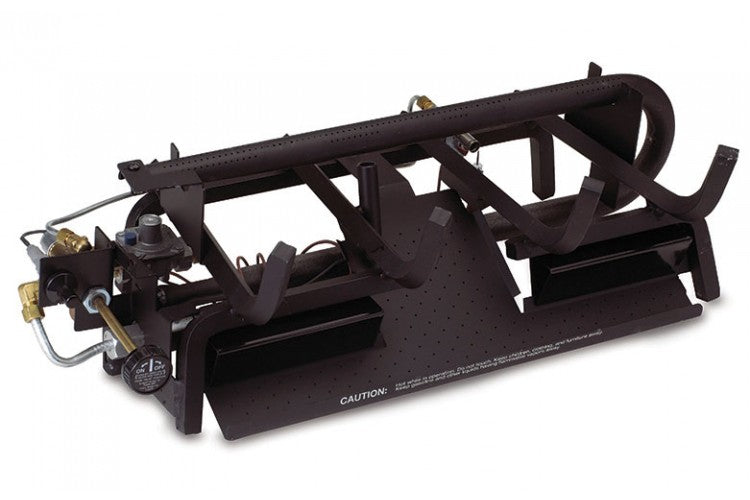

The RH PETERSON G10-24/30-01V is a vent-free burner with electronic ignition and a variable flame remote control, designed for use with specific 24" and 30" Charred Series Log Sets. This natural gas burner features 19,000 (L) / 37,000 (H) BTUs and is ANSI Certified. It includes a pre-assembled electronic pilot valve with variable flame height remote and an ODS safety system.

• Vent free burner
• Electronic ignition
• Variable flame remote control

Product Highlights

Vent-free burner with electronic ignition, variable flame remote, and ODS safety system. Designed for 24" and 30" Charred Series Log Sets.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G10-24/30-01V

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vent Free
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 24" / 30"
• Allowable Log Sets: Charred Series
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 37000
• Ignition Type: Electronic Ignition
• Remote: Variable Flame Remote Included
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): NA
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.) - 24": 28"
• Req. Min. Front Width (in.) - 30": 34"
• Req. Min. Rear Width (in.): 20"
• Req. Min. Depth (in.): 14"
• Req. Min. Height (in.): 18"
