Rh Peterson G10-16/18-15 Burner G10 Vent-Free 16/18 Inch Natural Gas Variable Remote

Product Description

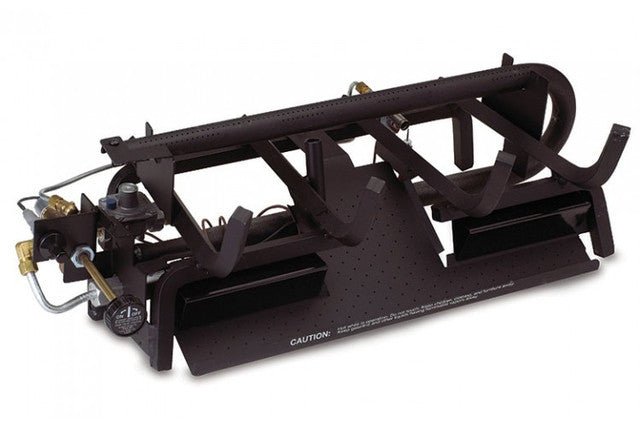

The RH PETERSON G10-16/18-15 vent-free burner features a variable flame remote control and is designed for specific 16/18" Charred Series Log Sets. It operates on natural gas, providing 26,000 (L) / 35,000 (H) BTUs. The burner is ANSI Certified and includes a pre-assembled millivolt control valve with variable flame height remote and an ODS safety system.

• Vent-free burner
• Variable flame remote control
• For use with specific 16/18" Charred Series Log Sets

Product Highlights

This burner includes a G10 custom grate and connector kit, glowing embers, Bryte Coals, and Lava-Fyre Granules. It also features a standing pilot and accommodates 16" /18" Log Sets.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G10-16/18-15

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vent Free
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 16" / 18"
• Allowable Log Sets: Charred Series
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 35000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Variable Flame Remote Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.): 22"
• Req. Min. Rear Width (in.): 20"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 18"
• Power Source: Gas Powered
• Material: Alloy Steel
• Finish Type: Painted
• Installation Type: Floor Mount
• Special Feature: Dual Burner
• Style: Customized
• Room Type: Living Room
• Ventilation Type: Vent Free
• Specific Uses For Product: Indoor
• Heating Element: Gas
• Maximum Compatible Size: 22 Inches
• Orientation: Corner
