Rh Peterson G10-16/18-01VP Vent Free Lp Burner 32000 Btu/h

Product Description

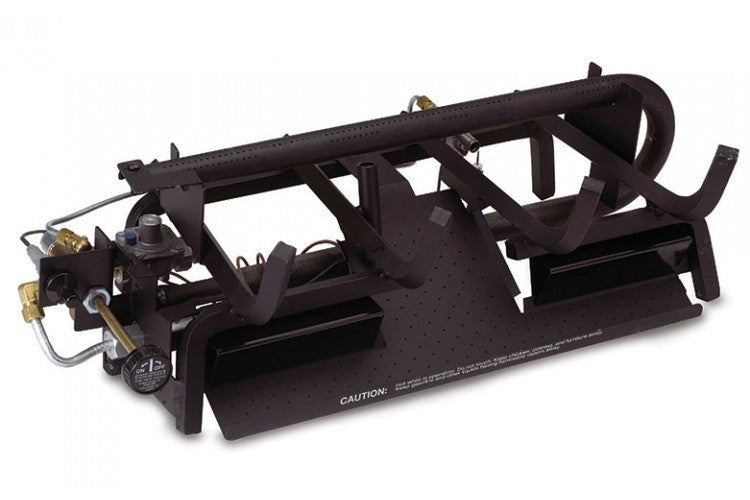

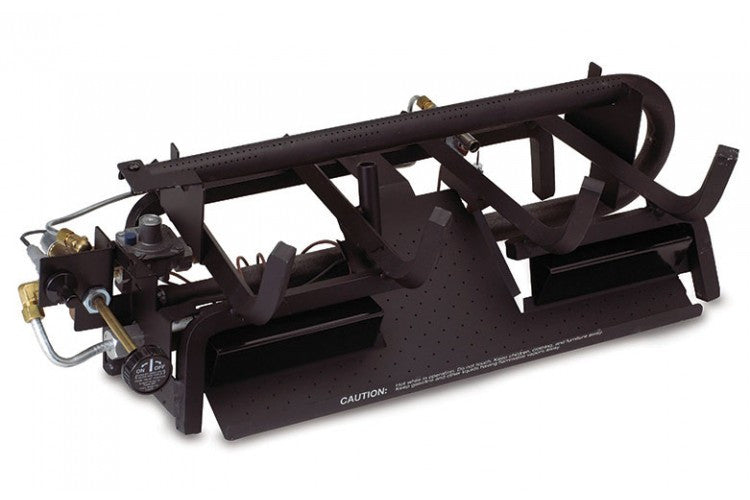

The RH PETERSON G10-16/18-01VP is a vent-free liquid propane burner designed for indoor, single-sided fireplaces. It delivers 24,000 BTU/h on low and 32,000 BTU/h on high, with an ANSI-certified electronic ignition system and a variable flame height remote control included in the package. An ODS (Oxygen Depletion Sensor) safety system is built in, providing automatic shutoff if oxygen levels drop below safe thresholds. Licensed gas technicians and qualified hearth professionals handle installation. The burner ships pre-assembled with a custom grate, connector kit, glowing embers, Bryte Coals, and Lava-Fyre Granules. Log sets are sold separately and must be specifically compatible with this burner.

This burner is rated for use with 16-inch and 18-inch Charred Series log sets in indoor, single-sided fireplace applications. It is Mobile Home Approved. Compatible log sets include the Charred Frontier Oak, Charred Aged Split Oak, Charred Alpine Birch, and Charred Gnarled Split — all featuring a burnt-through front log design. Minimum fireplace dimensions for 16-inch and 18-inch log sets are 22 inches front width, 20 inches rear width, 13 inches depth, and 18 inches height. This unit is for liquid propane only; a natural gas version (G10-16/18-01V) is also available. Vent-free products cannot be shipped to California. State and local codes in some areas prohibit vent-free installations — verify local building codes before ordering or installing.

Key Features

• ANSI-certified vent-free LP burner rated at 24,000 BTU/h (low) and 32,000 BTU/h (high)
• Pre-assembled electronic ignition with variable flame height remote control included
• Built-in ODS safety system for automatic shutoff on low-oxygen conditions
• Compatible with 16-inch and 18-inch Charred Series log sets only — not universal
• Mobile Home Approved certification
• Includes custom G10 grate, connector kit, glowing embers, Bryte Coals, and Lava-Fyre Granules

Compatibility

Designed for use exclusively with compatible 16-inch and 18-inch Charred Series log sets: Charred Frontier Oak, Charred Aged Split Oak, Charred Alpine Birch, and Charred Gnarled Split. This burner is NOT universal. Using it with a non-compatible log set creates risk of fire, carbon monoxide poisoning, and property damage. Log sets are sold separately.

Installation Notes

Installation must be performed by a qualified gas technician or licensed hearth professional in accordance with applicable local codes and the manufacturer instructions. Shut off the gas supply at the source before making any connections. The gas inlet connection is 1/2 inch; verify that supply line sizing meets local code requirements. Confirm inlet gas pressure is within the 11.0-inch to 13.0-inch water column range before commissioning. Vent-free appliances require adequate room ventilation — always verify local building codes permit vent-free installations before proceeding.

Technical Specifications

• BTU/h Output (Low): 24,000 BTU/h
• BTU/h Output (High): 32,000 BTU/h
• Fuel Type: Liquid Propane (LP)
• Ignition Type: Electronic Ignition
• Venting Type: Vent Free
• Remote Control: Variable Flame Remote Included
• Gas Connection Size: 1/2 inch
• Inlet Gas Pressure (Min.): 11.0 inches w.c.
• Inlet Gas Pressure (Max.): 13.0 inches w.c.
• Allowable Log Set Sizes: 16 inches and 18 inches
• Allowable Log Sets: Charred Series only
• Location of Use: Indoor
• Fireplace Style: Single Sided
• Grate Type: Standard (custom G10 grate included)
• Certification: ANSI Certified, Mobile Home Approved

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G10-16/18-01VP
