Rh Peterson APK-11N Automatic Pilot Kit on Off Remote Natural Gas

Product Description

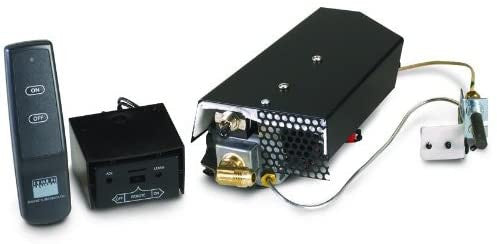

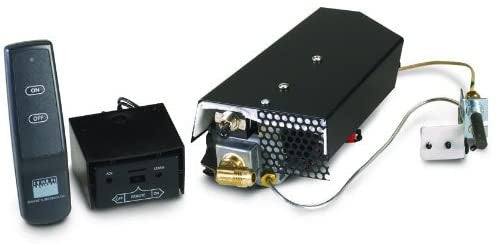

The RH PETERSON APK-11N is an automatic pilot kit designed for natural gas vented log sets, featuring an on/off remote control system. The kit converts a standing pilot burner to remote-operated ignition, allowing the log set to be switched on or off without manual access to the firebox. It supports a standing pilot configuration and is rated for up to 90,000 BTU capacity. Installation is handled by a qualified gas appliance technician and suits both retrofit and new-installation scenarios in residential settings.

The APK-11N is intended for use with vented natural gas log sets in residential fireplaces. It is compatible with the G4 burner as an add-on kit and is also available factory-installed on the G45 and G46 burners. The remote control system provides on/off operation from across the room, making it a practical upgrade for existing vented log set installations where manual valve access is inconvenient.

Key Features

• On/off remote control operation for vented natural gas log sets
• Standing pilot ignition system rated up to 90,000 BTU capacity
• Compatible with G4 burner as a field-installed add-on kit
• Factory-install option available on G45 and G46 burners
• Natural gas configuration

Compatibility

Designed for use with the G4 natural gas burner as an add-on kit. Also available factory-installed on the G45 and G46 burners.

Installation Notes

Installation of this pilot kit must be performed by a licensed gas technician in accordance with local codes and the appliance manufacturer instructions. Shut off the gas supply at the main valve before beginning any work on the burner or pilot assembly. Do not attempt to modify the gas valve, orifice, or pilot tubing beyond the scope of the kit instructions. Verify all connections for leaks using an approved leak-detection solution before returning the appliance to service.

Technical Specifications

• Fuel Type: Natural Gas
• Ignition Type: Standing Pilot
• BTU Capacity: Up to 90,000 BTU/h
• Control Type: On/Off Remote

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: APK-11N
