RGF HVAC-PHI-PKG9-24V 9-Inch Package Unit 3.5-7.5 Ton Replacement MPN

Product Description

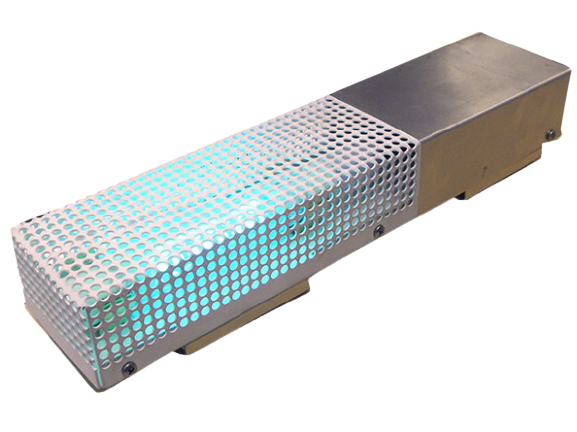

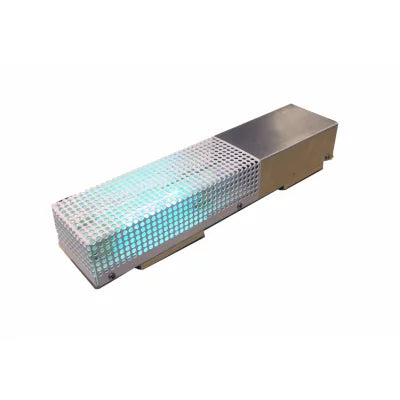

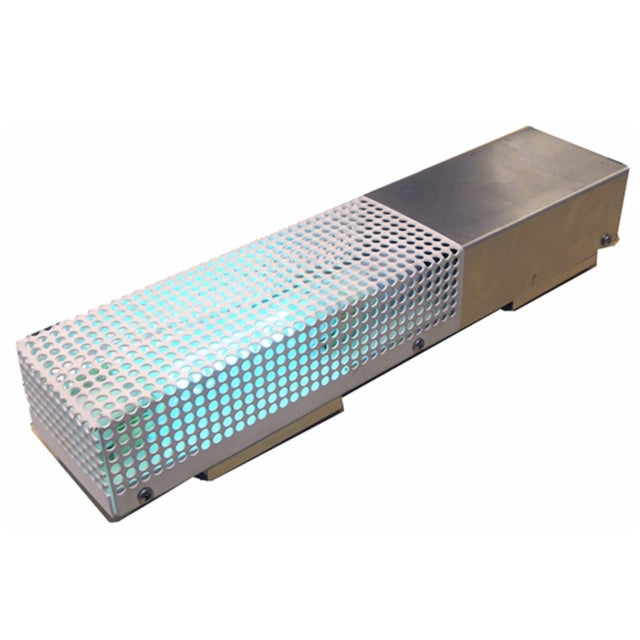

The RGF HVAC-PHI-PKG9-24V is an in-duct air purifier designed for HVAC package systems with capacities from 3.5 to 7.5 tons. It operates on a twenty-four volt alternating current power supply and employs Photohydroionization (PHI-CELL) technology to effectively reduce bacteria, viruses, mold, odors, and volatile organic compounds (VOCs). This unit features a magnetic mount that simplifies installation and is suitable for air handler cabinets.

• Reduces viruses, bacteria, mold spores, and odors using PHI-Cell technology.

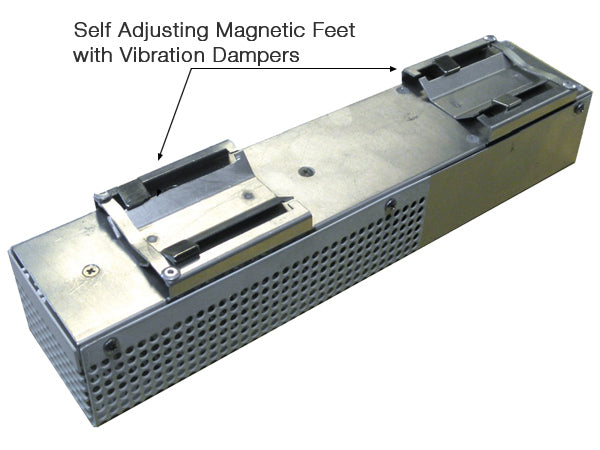

• Installs without tools through a versatile magnetic mount with adjustable feet.
• Operates continuously and silently to maintain high air quality.

Product Highlights

The RGF HVAC-PHI-PKG9-24V air purifier connects directly to the HVAC unit's control box and is engineered to work with air systems rated from two hundred fifty to eight thousand cubic feet per minute and blower sizes between one thousand two hundred to three thousand cubic feet per minute.

Product Information

Standard Information

• Brand: RGF
• Type: In-Duct Air Purifier

Technical Specifications

• Power Supply: 24 VAC
• Material: Aluminum
• Dimensions: 2.25 inches Wide x 13.5 inches Long x 1.75 inches Deep
• Weight: 1 pound
• Flow Rating: 250 to 8000 CFM
• HVAC Blower Size: 1,200 to 3,000 CFM
• Replacement Cell Part #: PHIC-9PKG
• Lamp Life: 18,000 to 25,000 hours
