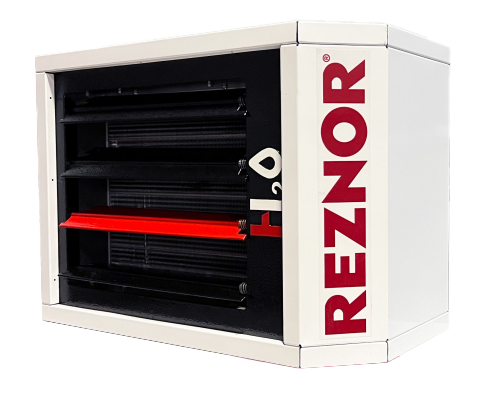

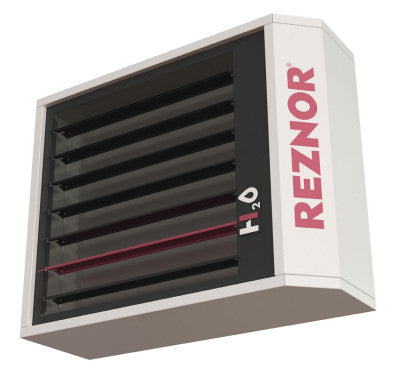

Reznor UWS-62/77 Horizontal/Vertical Suspended Hydronic Unit Heater - Hot Water Use

Product Description

The Reznor UWS62/77 is a horizontal and vertical suspended hydronic unit heater designed for hot water use in commercial and industrial applications. This unit utilizes a hot water system, typically powered by a boiler, to provide efficient heating through its advanced heat exchanger.

• Suitable for warehouses, retail establishments, and medical facilities.
• Available for both horizontal and vertical air delivery options.
• Durable construction ensures long-lasting performance.

Product Highlights

This heater features a front-facing design with all connections positioned at the rear. It comes equipped with a multi-speed motor that is protected against water spray for enhanced durability. Users can easily switch between different air delivery angles, ensuring optimal heat distribution throughout the space.

Product Information

Standard Information

• Brand: Reznor
• MPN: UWS-62/77

Technical Specifications

• BTU Output: 62,000 / 77,000
• CFM Range: 1,404 / 1,820
• Supply Voltage: 115/1/60
• Rows of Coils: 2
• Maximum Exiting Temperature: 120°F
• Approx. Fan RPMs: 1,050
• Width: 32.75 inches
• Depth: 19.813 inches
• Height: 27.438 inches
• Net Weight: 88 lbs.
