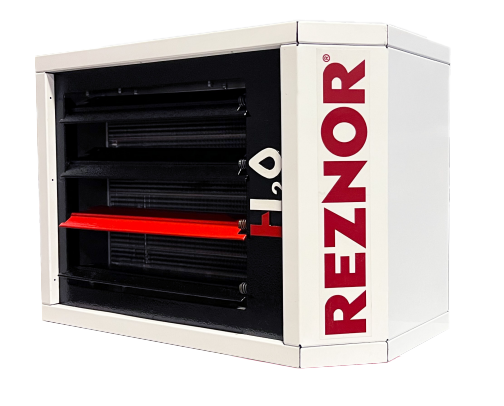

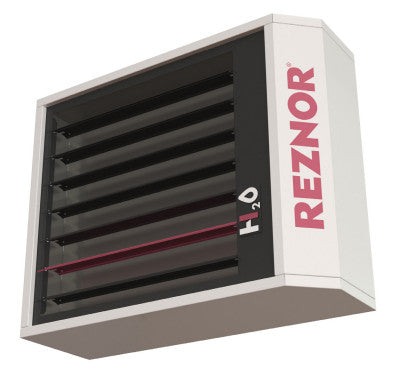

Reznor UWS-159/191 Horizontal/Vertical Suspended Hydronic Unit Heater - Hot Water Use

Product Description

Reznor UWS159/191 is a suspended hydronic unit heater designed for hot water use in commercial and industrial settings. This heater operates using hot water from a boiler, making it efficient for heating large spaces. The design includes all hook-ups at the rear of the unit, promoting a neat installation.

• Multi-speed enclosed motor for quiet operation
• Directional air delivery with options for horizontal or vertical discharge
• Durable copper tubing and pressure-tested heat exchangers

Product Highlights

The UWS series enhances building sustainability while reducing environmental impact.

Product Information

Standard Information

• Installation Type: Ceiling Mount
• Fuel Type: Hot Water
• Certified Usage: Commercial (Indoor Only)

Technical Specifications

• BTUs (Low / High): 159,000 / 191,000
• Kw (Low / High): 46.6 / 56.0
• Blower/Fan Size: 24 inches
• CFMs (Low / High): 3800 / 4147
• Rows of Coils: 2
• Max. Exiting Temp.: 120 degrees F
• Approx. Fan RPMs: 1050
• Supply Air Velocity FPM (Low / High): 534 / 583
• Motor Horsepower: 0.5
• Width: 41.5 inches
• Depth: 20.813 inches
• Height: 35.438 inches
• Net Weight: 142 lbs
