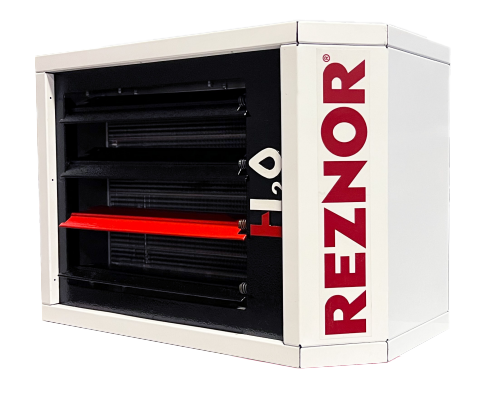

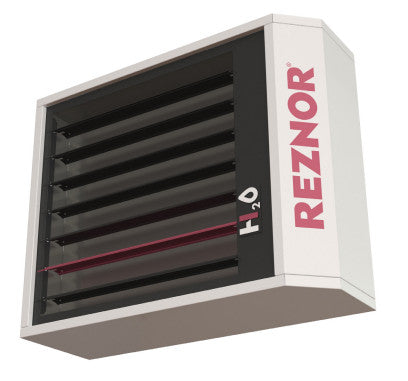

Reznor UWS-110/137 Horizontal/Vertical Suspended Hydronic Unit Heater - Hot Water Use

Product Description

The Reznor UWS-110/137 is a horizontal and vertical suspended hydronic unit heater designed for hot water use in commercial and industrial spaces. This heater operates with hot water from a boiler that flows through its heat exchanger, providing efficient heating solutions. The UWS series supports sustainable practices, reducing environmental impact when paired with hot water heat systems.

• Fan/motor assembly includes variable speed control.
• Designed for easy cleaning and maintenance.
• Suitable for multiple installation applications.

Product Highlights

This heater features directional control for air delivery, enabling both horizontal and vertical discharge. Its durable copper tubing withstands high pressures and supports efficient thermal performance. The spacing between the fins enhances maintenance efficiency, making this unit a reliable choice for diverse environments.

Product Information

Standard Information

• Installation Type: Ceiling Mount
• Fuel Type: Hot Water

Technical Specifications

• BTUs (Low / High): 110,000 / 137,000
• CFMs (Low / High): 2,200 / 2,805
• Fan Size: 24 inches
• Net Weight: 117 lbs
• Max. Exiting Temp.: 120°F
• Supply Air Velocity FPM (Low / High): 435 / 555
• Motor Horsepower: 0.5
• Dimensions (Width x Depth x Height): 38 x 20.625 x 29.438 inches
