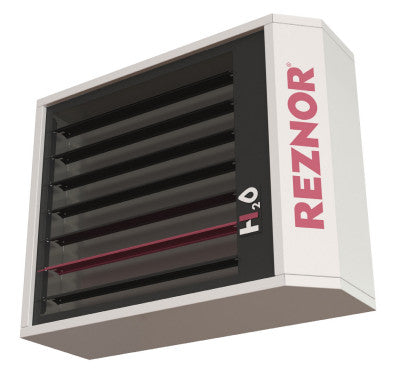

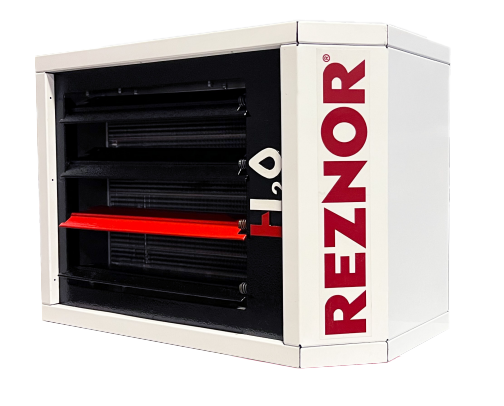

Reznor UWS-10/15 Horizontal/Vertical Suspended Hydronic Unit Heater - Hot Water Use

Product Description

Reznor's UWS-10/15 is a horizontal and vertical suspended hydronic unit heater designed for hot water use. This heater operates with hot water supplied by a boiler, offering effective heat for commercial and industrial applications. With a unique design, it allows installation flexibility and efficient air delivery.

• Multi-speed motor designed for quiet operation.
• Variable speed fan control included.
• Durable copper tubing suitable for high water pressure.

Product Highlights

The UWS series is engineered for efficient heating in various spaces, including warehouses, retail establishments, and medical facilities.

Product Information

Standard Information

• Installation Type: Ceiling Mount
• Fuel Type: Hot Water
• Certified Usage: Commercial (Indoor Only)

Technical Specifications

• BTUs (Low / High): 10,000 / 15,000
• Kw (Low / High): 2.9 / 4.4
• Blower/Fan Size (in.): 10
• CFMs (Low / High): 248 / 410
• Rows of Coils: 2
• Max. Exiting Temp.: 120°F
• Approx. Fan RPMs: 1550
• Motor Horsepower: 0.08
• Width (in.): 19.25
• Depth (in.): 14
• Height (in.): 19.934
• Net Weight (lbs.): 30
