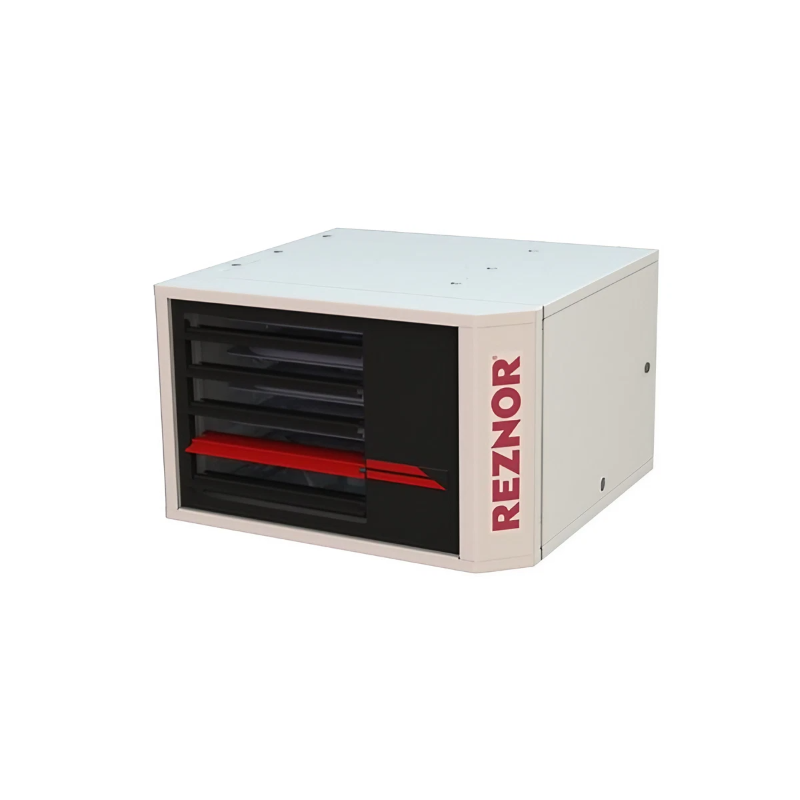

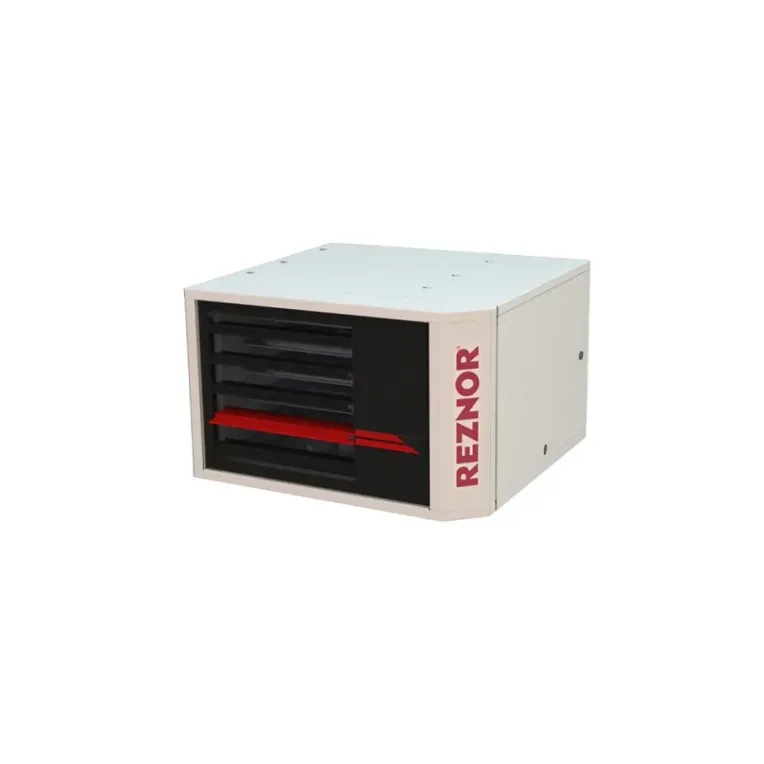

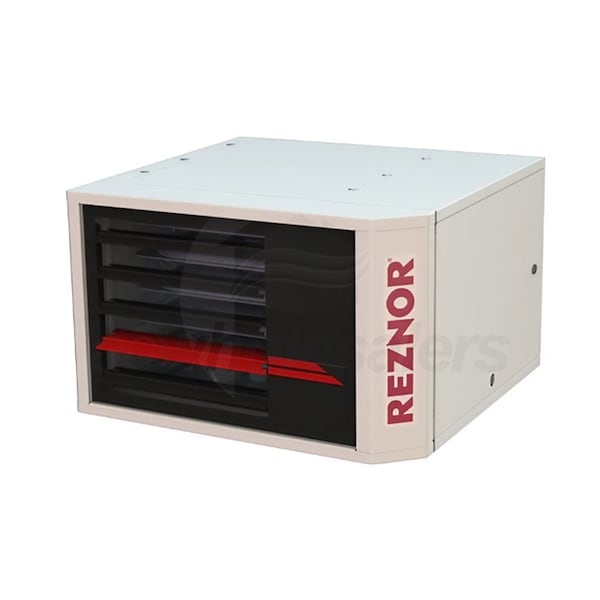

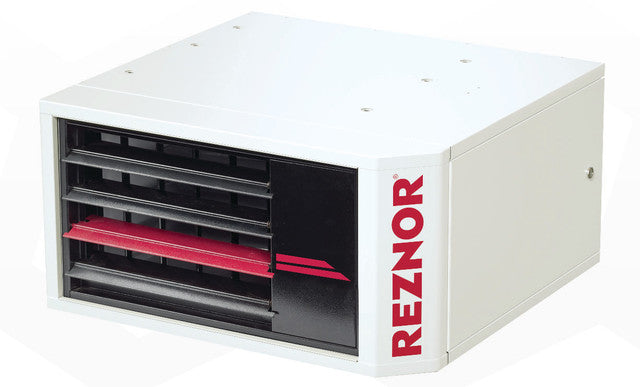

Reznor UDXC200 Gas-Fired Unit Heater

Product Description

The Reznor UDXC200 is a gas-fired unit heater suitable for industrial, commercial, and residential use. It has a TCORE2 titanium stabilized, aluminized steel heat exchanger. This unit is power vented and can be converted to separated combustion with an optional kit. Designed for suspended mounting, it delivers effective space heating with minimal noise.

• Power vented to reduce heat loss.
• Equipped with a TCORE2 titanium stabilized heat exchanger.
• Field convertible to separated combustion.

Product Highlights

This gas-fired unit heater functions seamlessly in various settings.

Product Information

Standard Information

• Product Line: UDXC
• Product Category: Unit Heater

Technical Specifications

• Fuel Type: Natural Gas
• Vent Type: Power Vent
• Configuration: Horizontal
• Mounting Type: Suspended, Ceiling Mount
• Heating Capacity: 166000 BTU
• Maximum Input Capacity: 200000 BTU
• Thermal Efficiency: 83%
• Maximum Air Flow: 2562 CFM
• Voltage: 110-120V
• Phase: 1
• Output Current: 4.6 Amps
• Power Consumption: 491 Watts
• Primary Vent Pipe Diameter: 5 Inches
• Flue Connection Size: 6 Inches
• Gas Connection Size: 1/2 Inch
• Height: 20.125 Inches
• Width: 38.188 Inches
• Depth: 48.438 Inches
• Weight: 193 Pounds
• ANSI Certified: Yes
• Heat Exchanger Material: Aluminized Steel
• Noise Level: 53 dBA
• Discharge Air Temperature Rise: 60 ¡F
• Discharge Air Opening Area: 2.56 ft²
• Output Velocity: 1003 FPM
• Circuit Breaker Size: 15 Amps
• Top to Ceiling: 4 Inches
• Bottom to Floor: 5 Feet
• To Side Wall: 2 Inches
• To Rear Wall: 18 Inches
• Access Panel: 18 Inches
