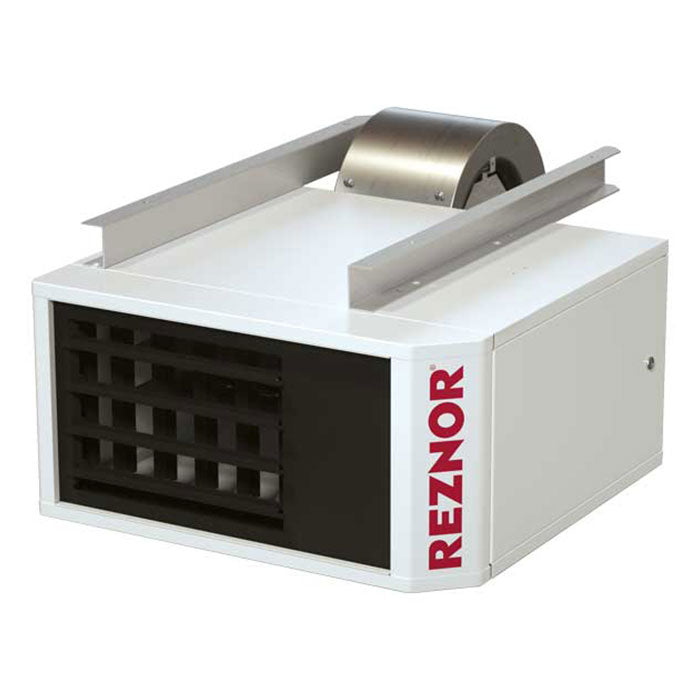

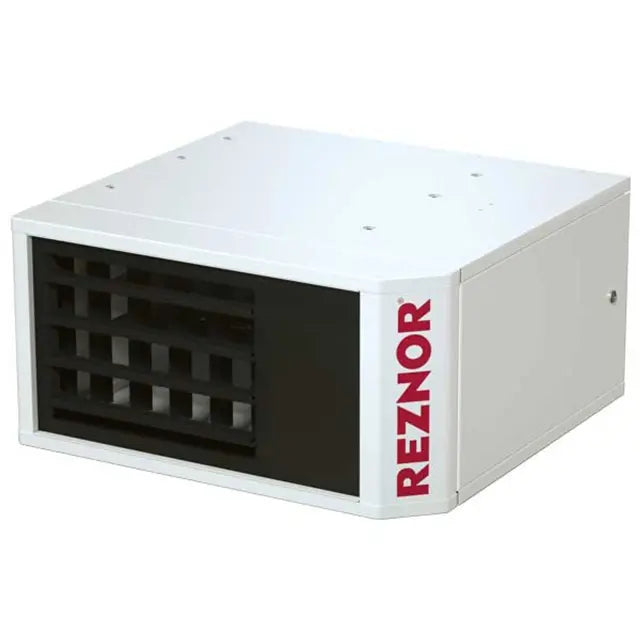

Reznor UBX175 UBX Power Vented Gas Fired Unit Heater 175000 BTU

Product Description

The Reznor UBX175 is a gas-fired unit heater designed for effective space heating. This model operates with a maximum input capacity of one hundred seventy-five thousand BTU. It is power vented to eliminate heat losses during operation, making it suitable for various heating applications. The unit is compliant with ETL standards for installation in both the United States and Canada.

• Features titanium stabilized aluminized steel heat exchanger.
• Includes multi-try direct spark ignition system.
• Designed for low noise operation with isolated fan and venter motors.

Product Highlights

The Reznor UBX175 is ideal for commercial spaces requiring efficient heating and minimal maintenance.

Product Information

Standard Information

• Product Category: Unit Heater
• Product Line: UBX

Technical Specifications

• Heat Exchanger Material: Aluminized Steel
• Fuel Type: Natural Gas, Propane Gas
• Vent Type: Power Vent
• Configuration: Horizontal
• Mount Type: Suspended
• Maximum Input Capacity: 175000 BTU
• Thermal Efficiency: 83 %
• Maximum Air Flow: 2989 CFM
• Voltage: 115 Volts
• Phase: 1
• Maximum Load: 9.6 Amps
• Primary Vent Pipe Diameter: 5 Inches
• Flue Connection Size: 6 Inches
• Gas Connection Size: 1/2 Inch
• Product Height: 20 1/8 Inches
• Product Width: 38 3/16 Inches
• Product Depth: 64 3/4 Inches
• Shipping Weight: 342 Pounds
• ANSI Certified: Yes
• Parts Warranty: 5 Years
• Heat Exchanger Warranty: 10 Years
• SKU: UBX175-NG
• Warranty: 1 Year Limited
• Exact Watts: 415 Watts
• Installation Type: HVAC Professional
• Sound Level: 52 dBA
• Motor Type: Blower
• Vendor Name: Reznor
• Vendor Part Number: UBX-175
