Reznor rz011606 Time Delay Relay

Product Description

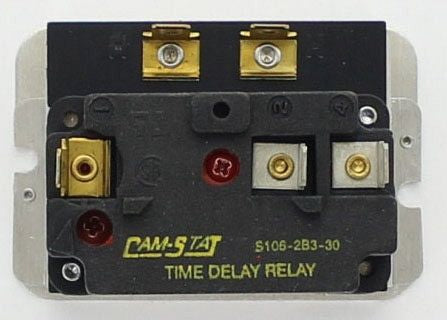

The REZNOR rz011606 is a time delay relay designed for use in heating systems where sequenced or delayed switching is required. Time delay relays control the timing of electrical circuits, allowing equipment to start up or shut down in a specific sequence to protect components and ensure safe, efficient operation. This relay is installed by licensed HVAC technicians as part of system controls in unit heaters, furnaces, or similar heating equipment manufactured under the REZNOR brand.

Time delay relays in this application are typically found in commercial and industrial heating units, including gas-fired unit heaters and duct furnaces. The rz011606 serves as a controls component that manages the sequencing of blower motors, ignition circuits, or other loads, helping to prevent issues such as cold air delivery at startup or component damage from abrupt shutoff cycles.

Key Features

• OEM-matched time delay relay for REZNOR heating equipment
• Controls electrical sequencing to protect system components
• Designed for integration into existing REZNOR controls wiring
• Supports proper blower and burner sequencing during startup and shutdown

Compatibility

Designed as an OEM-style replacement time delay relay for REZNOR heating equipment where this function is specified in the controls circuit.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing relay or accessing the controls compartment. Refer to the unit wiring diagram for proper terminal connections, and confirm relay ratings match the original component before energizing the system.

Technical Specifications

• Component Type: Time Delay Relay

Standard Information

• Brand: REZNOR
• Manufacturer Part Number: rz011606
