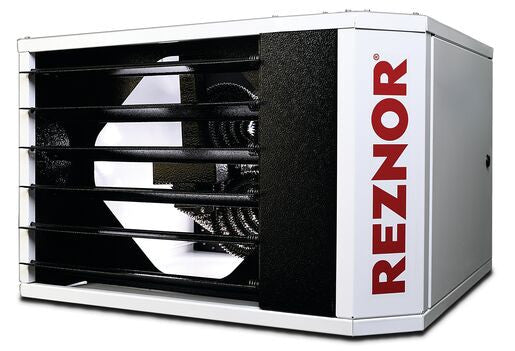

Reznor EUH-5 5kW / 17,060 BTU Commercial / Industrial Multi-Phase Low-Static Axial Fan Electric Unit Heater - 208-240V

Product Description

The Reznor EUH-5 is a 5kW electric unit heater with a heating capacity of 17,060 BTU. It operates on 208-240V supply and can be used in either single or three-phase configurations. This heater is suitable for commercial and industrial applications.

• Heating capability of 5,000 Watts
• CFM range of 158 to 479
• Includes wall bracket for easy installation

Product Highlights

The EUH-5 is designed for low-noise operation and features adjustable louvers for directing heated air. The unit includes a high temperature limit switch, overload protection, and fully enclosed stainless steel heating elements. It is also BMS capable and provides options for various control methods.

Product Information

Standard Information

• Installation Type: Hanging - Ceiling or Wall
• Fuel Type: Electric

Technical Specifications

• Heating BTUs: 17060
• kW (@240V): 5.3
• CFMs: 158 / 479 (Min. / Max.)
• Discharge Air Temperature Rise (°F): 33
• Width: 23.344 inches
• Depth: 27.969 inches
• Height: 15.25 inches
• Net Weight: 50 lbs
• Voltage: 208-240V
• Amps (@240V): 22.4 (single-phase), 13.0 (three-phase)
