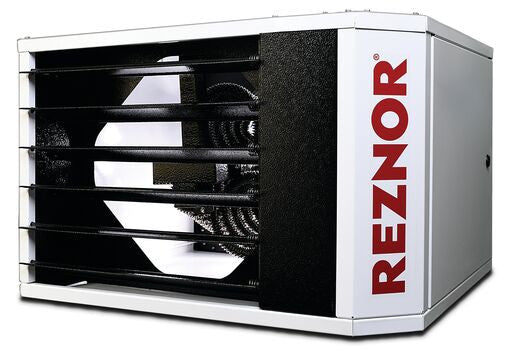

Reznor EUH-3 3kW Commercial / Industrial Electric Unit Heater - 208-240V

Product Description

The REZNOR EUH-3 is a 3kW electric unit heater designed for commercial and industrial use. This unit operates with 208-240V electricity and is field convertible for single or 3-phase use. It features a high temperature limit switch with automatic reset and internal overload protection. The unit includes a wall bracket for easy installation and an external terminal strip for 24V control connections.

• Operates with 208-240V electricity and is field convertible for single or 3-phase use
• Features a high temperature limit switch with automatic reset and internal overload protection
• Includes a wall bracket for easy installation and an external terminal strip for 24V control connections

Product Highlights

The EUH-3 is ideal for retail spaces, showrooms, workshops, schools, and industrial manufacturing.

Product Information

Standard Information

• Brand: REZNOR
• Manufacturer Part Number: EUH-3

Technical Specifications

• Installation Type: Hanging - Ceiling or Wall
• Fuel Type: Electric
• Certified Usage: Commercial (Indoor Only)
• Installation Kit: Bracket Included
• Heating BTUs: 10236
• kW (@208V): 2.3
• kW (@240V): 3
• CFMs: 125 / 431 (Min. / Max.)
• Discharge Air Temperature Rise (°F): 22
• Blower: Built-In
• Remote: Not Available
• Fuse Block: No
• Oscillating: No
• Tip-Over Safety Switch: No
• Connectivity: Not WiFi Compatible
• Min. Mounting Height (ft.): 6'
• To Access Panel (in.): 21"
• To Side Wall (in.): 1"
• To Rear (in.): 18"
• Width (in.): 23.344
• Depth (in.): 27.969
• Height (in.): 15.25
• Certifications: UL, CSA
• Voltage: 208-240V
• Amps (@208/1/60): 11.1
• Amps (@208/3/60): 6.5
• Circuit Breaker (Amps @208V): 20
• Amps (@240/1/60): 12.8
• Amps (@240/3/60): 7.5
• Circuit Breaker (Amps @240V): 15
