Reznor EUH-20 Unit Heater 20kW 68242 BTU 3 Phase

Product Description

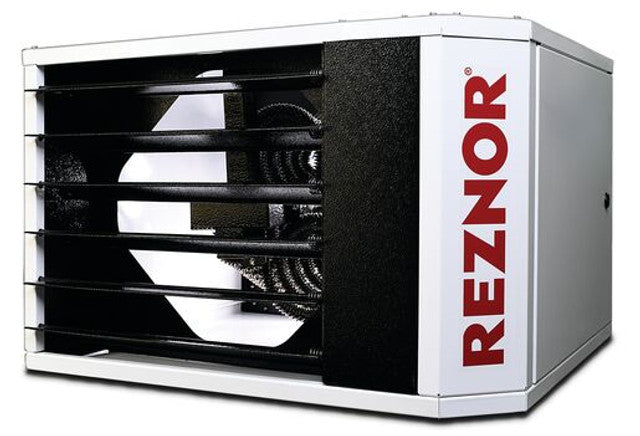

The Reznor EUH-20 is a reliable 20kW unit heater designed for commercial indoor use. This model offers high heating capacity with a total output of 68,242 BTU. The unit is suitable for installation on ceilings or walls, making it adaptable for various spaces.

• Available in sizes from 3kW to 30kW
• Features stainless steel heating elements for durability
• Includes a terminal strip for easy 24V control connections

Product Highlights

This unit heater includes a high temperature limit switch that automatically resets, ensuring safe operation. It also has adjustable louvers that allow for directed airflow based on user preference.

Product Information

Standard Information

• Installation Type: Hanging - Ceiling or Wall
• Fuel Type: Electric

Technical Specifications

• Heating BTUs: 68242
• kW (@240V): 20
• CFMs: 357 / 1290 (Min. / Max.)
• Discharge Air Temperature Rise (°F): 49
• Width: 28.156 inches
• Depth: 33.406 inches
• Height: 21.125 inches
• Voltage: 240V
• Amps (@240/3/60 - Low Heat): 41.7
• Amps (@240/3/60 - High Heat): 48.4
• Circuit Breaker (Amps @240V): 60
• Certifications: UL, CSA
