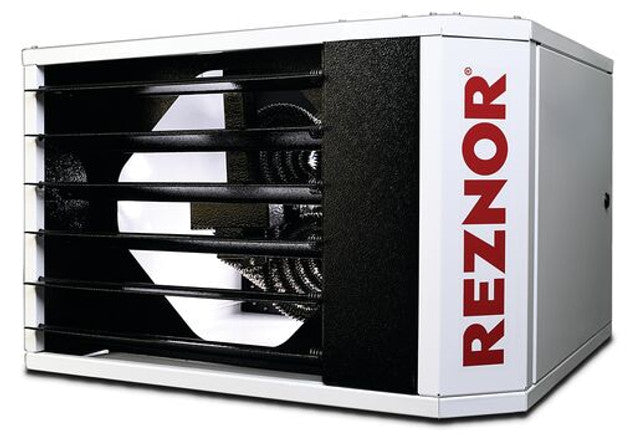

Reznor EUH-10W/AK44 Electric Unit Heater

Product Description

The Reznor EUH-10W/AK44 is an electric unit heater made for commercial and industrial indoor applications. It operates on 208-240 volts and can be configured for single or three-phase power. This unit uses stainless steel heating elements and has a twelve-inch fan that efficiently distributes heat throughout the space. An external terminal strip allows for 24-volt control connections. It works with various control options including multi-stage thermostats and multi-unit control setups.

• Operates on 208-240V with single or three-phase capability.
• Adjustable horizontal louvers for directing airflow.
• Includes a wall bracket for easy installation.

Product Highlights

The unit includes a high-temperature limit switch that resets automatically and features internal overload protection. The horizontal louvers are adjustable, letting users direct airflow where needed. It has a built-in blower that enhances circulation without oscillation.

Product Information

Standard Information

• Brand: Reznor
• Fuel Type: Electric

Technical Specifications

• MPN: EUH-10W/AK44
• Installation Type: Hanging - Ceiling or Wall
• Certified Usage: Commercial (Indoor Only)
• Heating BTUs: 34121
• Power: 10 kW
• Airflow (CFM): 191 / 957 (Min. / Max.)
• Width: 23.344 inches
• Depth: 27.969 inches
• Height: 15.25 inches
• Weight: 51 lbs.
• Certifications: UL, CSA
• Minimum Mounting Height: 6 feet
