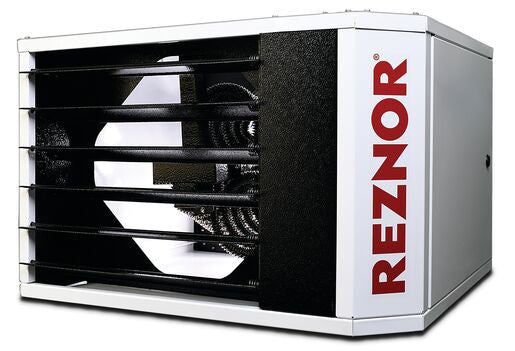

Reznor EUH-10 10kW / 34,121 BTU Commercial / Industrial Multi-Phase Low-Static Axial Fan Electric Unit Heater - 208-240V

Product Description

The Reznor EUH-10 is a multi-phase electric unit heater with a heating capacity of 10 kW, offering an output of 34,121 BTUs. This unit operates on voltage of 208 to 240 volts and is designed for commercial and industrial settings.

• Single speed fan with adjustable air direction
• Suitable for both 1 and 3-phase applications
• High temperature limit switch and automatic reset features

Product Highlights

The EUH-10 is ideal for heating in various environments, including workshops, schools, and warehouses. Its design ensures quiet operation with a noise-isolated fan motor, while its stainless steel heating elements promote durability.

Product Information

Standard Information

• Installation Type: Hanging - Ceiling or Wall
• Fuel Type: Electric

Technical Specifications

• Heating BTUs: 34,121
• Power Rating (kW) @ 208V: 7.5
• Power Rating (kW) @ 240V: 9.9
• CFMs: 191 / 957 (Min. / Max.)
• Discharge Air Temperature Rise: 33°F
• Min. Mounting Height: 6 ft.
• Width: 23.344 inches
• Depth: 27.969 inches
• Height: 15.25 inches
• Net Weight: 51 lbs.
• Certifications: UL, CSA
• Voltage: 208-240V
