REZNOR Reznor 1047139 VZH-40 Infrared Tube Heater 40,000 BTU (20 feet Tube Kit) RZ1047353
REZNOR Reznor 1047139 VZH-40 Infrared Tube Heater 40,000 BTU (20 feet Tube Kit) RZ1047353

Reznor 1047139 VZH-40 Infrared Tube Heater 40,000 BTU (20 feet Tube Kit) RZ1047353

REZNOR
Brand: REZNOR
SKU: 1047139
Availability: In Stock

Ships via freight in 1-3 business days
$1,759.94
$1,759.94
LTL Delivery

This product weighs 86 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

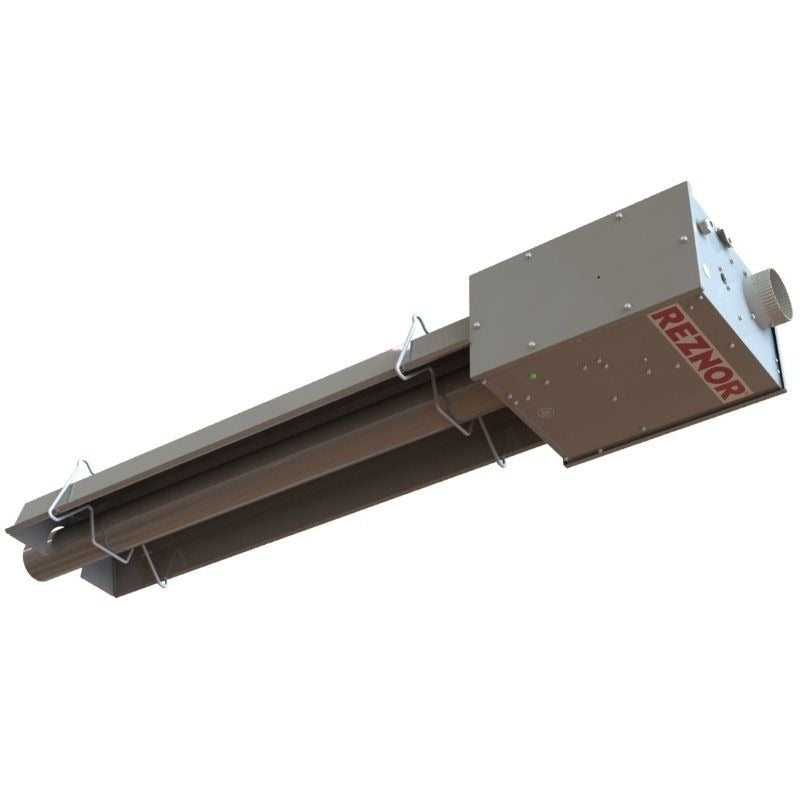

Reznor 1047139 is a VZH-40 infrared tubular heater configured as a 20-foot aluminized tube kit paired with a 40,000 BTU propane burner. The unit delivers direct radiant heat to people, floors, and equipment without first heating air, suitable for commercial and industrial spaces including warehouses, loading docks, service bays, manufacturing facilities, and exhibition halls.

  • 40,000 BTU propane input with positive-pressure sealed burner and direct-spark electronic ignition (three-try with 100% gas shutoff).
  • 20-foot aluminized 4-inch diameter, 16-gauge radiant tube with aluminum parabolic reflectors; tube kit SKU 1047139.
  • Electrical 115/1/60; 1/2" NPT gas connection; flue outlet 4"; mounting options include hanging, wall, or ceiling with straight, U-tube, or L-tube configurations.

Product Highlights

Direct infrared heating, 40,000 BTU propane burner, 20' aluminized 4" tube, CSA certified for commercial and industrial use.

Product Information

Standard Information

  • Brand: REZNOR
  • Manufacturer Part Number: 1047139
  • Country of Origin: United States
Technical Specifications
Brand
Reznor
Manufacturer Part Number
1047139
Model
VZH-40
Replacement/Related Burner SKU
RZ1047353
Type
Gas-fired tubular radiant infrared heater
Heating Capacity
40,000 BTU
Fuel Type
Propane
Ignition Type
Direct-spark electronic ignition (three-try with 100% gas shutoff)
Electrical
115/1/60
Gas Connection
1/2" NPT
Flue Outlet
4"
Operating Mode
Heating
Mounting Type
Hanging / wall / ceiling
Mounting Configurations
Straight, U-tube, L-tube; reflectors may be suspended level or angled up to 45 degrees
Tube Length
20' (240.0 in)
Tube Diameter
4" (4.0 in)
Tube Gauge / Material
16-gauge aluminized-steel
Burner Weight
39 lb (burner SKU RZ1047353)
Tube Kit Weight
86 lb (tube kit SKU 1047139)
Burner Dimensions (L x H x W)
17 1/2" x 9 1/2" x 13 15/32" (17.5 in x 9.5 in x 13.46875 in)
Certifications
CSA design certified 10; ANSI Z83.20/CSA 2.34, 2.17, 2.20
Country of Origin
United States
SKU (Tube Kit)
1047139
SKU (Burner)
RZ1047353
