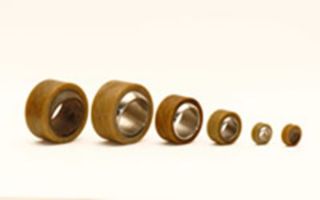

Rexnord 801-08-14-01 Annular Bearing - 0.5000 in Bore, 0.8750 in OD, 0.4370 in Inner Ring Width, Open

Product Description

The Rexnord 801-08-14-01 is an annular assembly designed for reliable performance in various applications. This product features an open spherical plain bearing. It is specifically engineered with a bore diameter of four tenths of an inch, an outer diameter of seven tenths of an inch, and an inner ring width of three-tenths of an inch.

• Self-lubricating design reduces maintenance needs.
• Constructed with a stainless steel inner ring for durability.
• Capable of operating in temperatures ranging from negative sixty-five to three hundred twenty-five degrees Fahrenheit.

Product Highlights

This bearing is ideal for applications requiring low maintenance and high durability. It can effectively handle misalignment angles up to six degrees.

Product Information

Standard Information

• Brand: Rexnord
• Type: Radial Bearing

Technical Specifications

• Model: 801
• Bore Diameter: 0.5000 in
• Outside Diameter: 0.8750 in
• Inner Ring Width: 0.4370 in
• Outer Ring Width: 0.3750 in
• Ball Diameter: 0.7190 in
• Ball Material: Stainless Steel
• Inner Ring Material: Stainless Steel
• Outer Ring Material: Woven Teflon Fiber
• Lubrication Type: Maintenance Free/Self-Lubricating
• Operating Temperature Range: -65 to 325 °F
• Manufacturer Catalog: View Catalog
