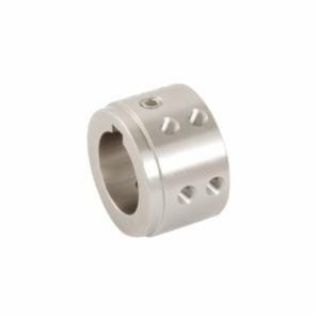

Rexnord 7392842 RND Coupling Hub V170/150 2-1/8 in

Product Description

The Rexnord Viva 7392842 coupling hub is designed for use with Viva V series close coupled elastomeric couplings. This coupling hub features a straight stock bore with a bore diameter of two and one-eighth inches. It has a hub length of two inches and a hub diameter of three point sixty-three inches. The coupling is made of steel and is suitable for applications in various mechanical systems.

• Material: Steel
• Maximum speed: Four thousand eight hundred rpm
• Type: Straight Stock Bore

Product Highlights

This hub connects the coupling to the shaft of the driver or driven equipment securely.

Product Information

Standard Information

• Application: For use with Viva V series close coupled elastomeric couplings
• Coupling Size: V170/150

Technical Specifications

• Bore Diameter: Two and one-eighth inches
• Hub Diameter: Three point sixty-three inches
• Hub Length: Two inches
• Keyway Size: One half inch wide by one quarter inch deep
• Maximum Speed: Four thousand eight hundred rpm
• Length Through Bore: Two inches
