Rexnord 7392666 V Series Flexible Tire Coupling Element V215

Product Description

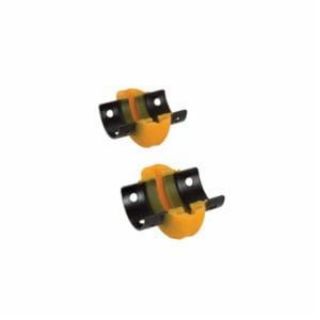

The Rexnord 7392666 is a V Series Flexible Tire Coupling Element designed to support various applications in heavy machinery. This coupling features a patented V notch design that ensures a uniform failure area, providing overload protection for high-pressure situations. The element combines a polyurethane to metal bond, offering durability and strength in demanding environments.

• Maximum speed of four thousand three hundred rpm.
• Outside diameter of two hundred fifteen millimeters.
• Torque rating of six hundred sixty-two Newton-meters.

Product Highlights

The Rexnord 7392666 is ideal for use with Viva® Close Coupled Elastomeric Couplings, operating efficiently in temperature ranges from sixty-six to ninety-three degrees Celsius. It is suitable for a wide range of applications including aggregates, air handling, construction machinery, food and beverage processing, material handling, and heavy-duty trucking.

Product Information

Standard Information

• Brand: Rexnord
• Manufacturer: Rexnord

Technical Specifications

• Series: V Series
• Coupling Size: V215
• Maximum Speed: 4300 rpm
• Torque Rating: 662 N-m
• Outside Diameter: 215 mm
• Temperature Rating: 66 to 93 deg C
• Suitable For Use With: Viva® Close Coupled Elastomeric Coupling
• Includes: Mounting Shoes and Hardware
