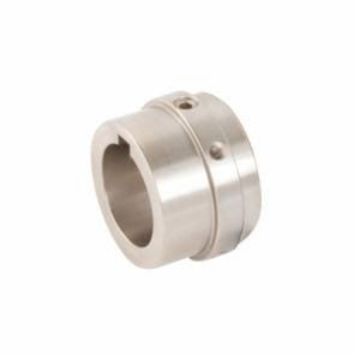

Rexnord 7300694 RND Omega Coupling Hub Straight Stock Bore 60

Product Description

The Rexnord Omega 7300694 is a coupling hub designed for elastomeric applications. This straight stock bore coupling hub is made from steel. It features a three-and-three-eighths inches bore diameter and a hub diameter of six and one-half inches. The length through bore is three and one-fourth inches. It is suitable for Omega E/ES/ES-R series elastomeric couplings.

• Material: Steel
• Hub Diameter: 6-1/2 in
• Bore Diameter: 3-3/8 in

Product Highlights

This coupling hub provides a secure connection between the shaft and driving equipment. Keyway size is seven-eighths inches wide by seven-sixteenths inches deep. The maximum speed rating is three thousand eight hundred and two thousand eight hundred RPM. It includes a seven-eighths inch by nine screw to ensure an effective fastening.

Product Information

Standard Information

• Type: Straight Stock Bore
• Application: For use with Omega E/ES/ES-R series elastomeric couplings

Technical Specifications

• Hub Length: 3-1/4 in
• Screw Size: 7/8-9
• Keyway Size: 7/8 in W x 7/16 in D
• Maximum Speed: 3800/2800 rpm
• Coupling Size: 60
