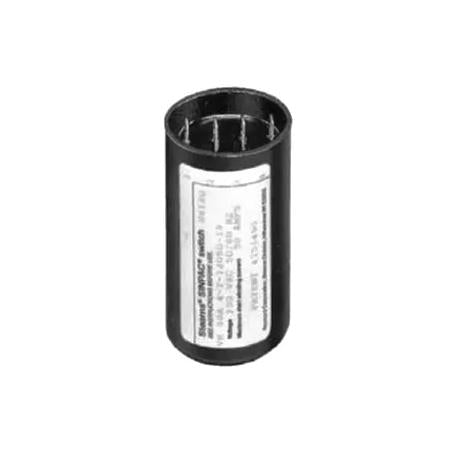

Rexnord 477205015UCK Solid State Motor Switch 5 HP 260V Cut - Out 230V Start Circuit 70V Cut - In 50A

Product Description

The Rexnord 477205015UCK Solid State Motor Switch is designed for single-phase motors, providing reliable switching for various applications. This switch operates at 5 horsepower and supports a voltage rating of 260 volts, making it suitable for a wide range of industrial uses.

• Designed to filter electrical noise for stable operation
• Easy installation with accessible terminals
• Features restart capability for enhanced performance

Product Highlights

The Rexnord Solid State Motor Switch is ideal for motors in grain dryers, water equipment, and various commercial appliances.

Product Information

Standard Information

• Brand: Rexnord
• Type: Solid State Motor Switch

Technical Specifications

• HP Rating: 5 HP
• Voltage Rating: 260 V
• Amperage Rating: 50 A
• Dimensions: 1.83 Inch dia x 3.38 Inch L
• Phase: 1-Phase
• Use With: 230VAC Capacitor Start/Capacitor Run Motors
• Standards: UL Listed, Meets ANSI/IEEE C62.41-1991 Category 3
