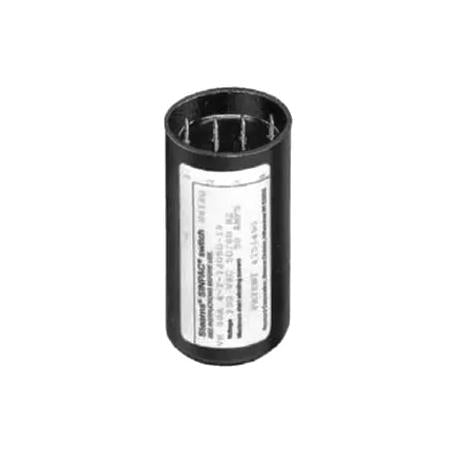

Rexnord 477203515U0K Solid State Motor Switch 3 HP 310V Cut - Out 230V Start Circuit 70V Cut - In 35A

Product Description

The Rexnord 477203515U0K is a solid state motor switch designed for single phase motors. This unit features a 3 horsepower rating, making it suitable for various applications. Its voltage specifications include a 310V cut-out and a 230V start circuit. The switch also operates with a 70V cut-in voltage and supports a maximum current of 35 amps.

• Designed for single phase motors
• Electrically protected to minimize noise interference
• Easy installation with accessible terminals

Product Highlights

This product offers reliable performance for starting circuits in one-phase motor applications.

Product Information

Standard Information

• Brand: Rexnord
• Part Number: 2VR35-310

Technical Specifications

• Phase: 1-Phase
• Use With: 230VAC Capacitor Start/Capacitor Run Motors
• HP Rating: 3 HP
• Voltage Rating: 310 V
• Amperage Rating: 35 A
• Dimensions: 1.83 Inch dia x 3.38 Inch L
• Trade Name: SINPAC
• Standards: UL Listed, Meets ANSI/IEEE C62.41-1991 Category 3
